RDP-2R15+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Diplexer, DC-20/950-2150 MHz, 50O

Download RDP-2R15+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

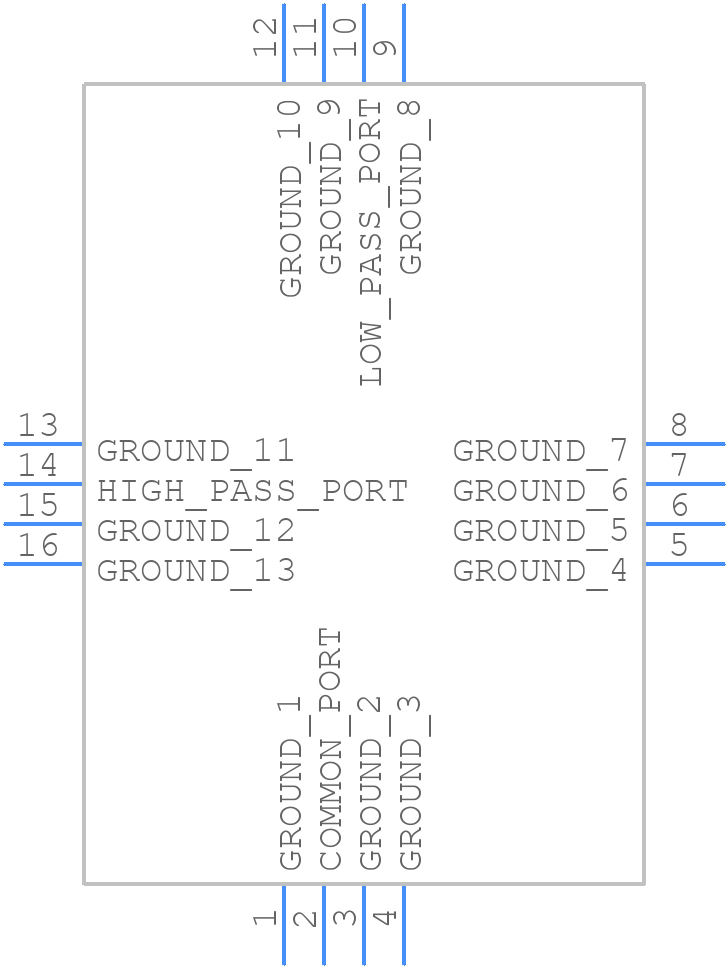

Symbol
RDP-2R15+ - Mini-Circuits - PCB symbol
click to zoom

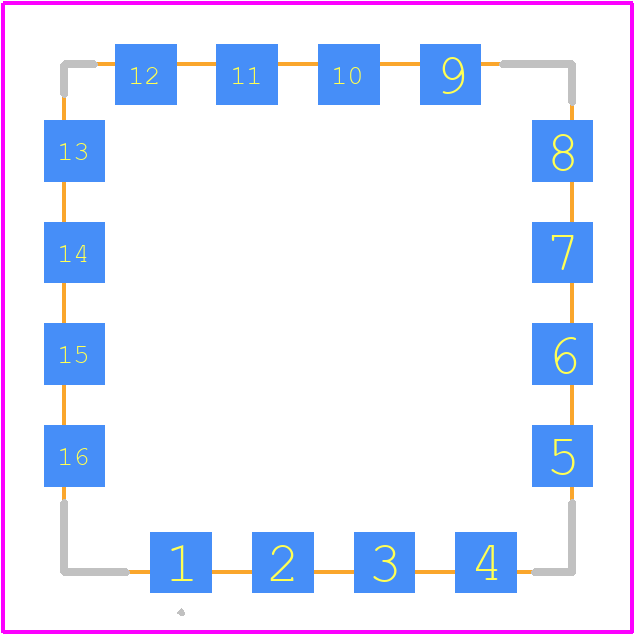

PCB Footprints
RDP-2R15+ - Mini-Circuits PCB footprint - Other - Other - CK605_2024-1
click to zoom
3D Models
RDP-2R15+ - Mini-Circuits - 3D model - Other - CK605_2024-1
click to zoom

RDP-2R15+ Details

  • Manufacturer Part Number:

    RDP-2R15+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Additional Feature:

    REEL WITH OTHER QTY ALSO AVAILABLE

  • Filter Type:

    DUPLEXER

  • Height:

    4.572 mm

  • Insertion Loss (Rx):

    1.5 dB

  • Insertion Loss (Tx):

    1.5 dB

  • Length:

    12.7 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7/13 INCH

  • Receive Center Frequency:

    1550 MHz

  • Transmit Center Frequency:

    20 MHz

  • Width:

    12.7 mm

RDP-2R15+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the RDP-2R15+ is -40°C to +85°C, although it's recommended to operate within -20°C to +70°C for optimal performance.
  • While the RDP-2R15+ is designed to operate in a variety of environments, it's not recommended to use it in high-humidity environments (>80% RH) without proper protection, as it may lead to reliability issues.
  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the device to minimize noise and ensure optimal performance. A detailed layout guide is available upon request.
  • Yes, the RDP-2R15+ can be used in switching power supply applications, but it's essential to ensure that the device is properly bypassed and decoupled to minimize noise and voltage transients.
  • Mini-Circuits recommends a 50Ω input and output termination for the RDP-2R15+ to ensure optimal impedance matching and minimize signal reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RDP-2R15+ Overview

Use the download button to access the RDP-2R15+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDP-2, or try a keyword search, such as Duplexers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
