RDP-50-2R15+ Frequently Asked Questions (FAQs)

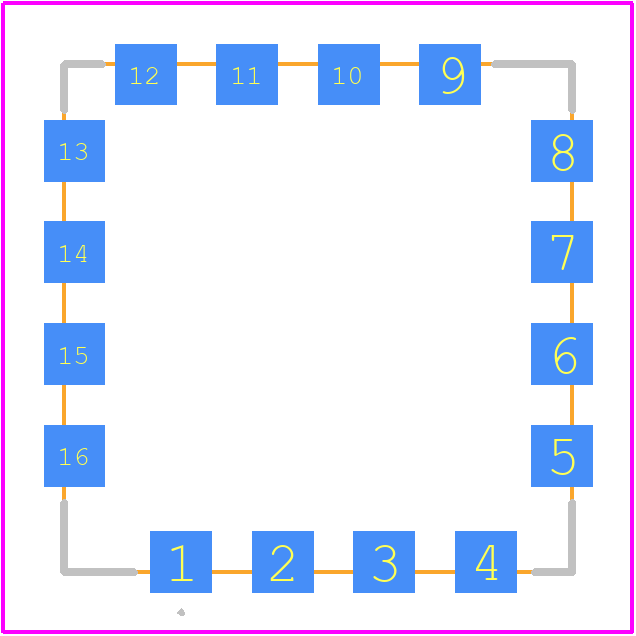

• What is the recommended PCB layout and footprint for the RDP-50-2R15+?
  Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
• How do I impedance match the RDP-50-2R15+ to my system?
  Impedance matching is critical for optimal performance. Mini-Circuits recommends using a pi-network or a T-network to match the 50-ohm input/output impedance of the RDP-50-2R15+ to your system's impedance. You can use online impedance matching tools or consult with a RF design expert to determine the optimal matching network.
• What is the maximum power handling of the RDP-50-2R15+?
  The maximum power handling of the RDP-50-2R15+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 2W of continuous power and up to 10W of peak power. It's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors.
• How do I minimize the effects of thermal drift on the RDP-50-2R15+?
  Thermal drift can affect the performance of the RDP-50-2R15+. To minimize its effects, ensure good thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. You can also consider using a thermistor or a temperature sensor to monitor the device's temperature and compensate for thermal drift.
• Can I use the RDP-50-2R15+ in a push-pull configuration?
  Yes, the RDP-50-2R15+ can be used in a push-pull configuration to achieve higher power output and improved linearity. However, it's essential to ensure that the devices are properly matched and biased to avoid uneven current sharing and thermal runaway. Consult with a RF design expert or refer to application notes for more information on push-pull configurations.
