RDS-10S-1045-D - Same Sky

Description: 10 Position, Through Hole, 2.54 mm Pitch, Rotary Actuator, Long Pins, DIP Switch

Download RDS-10S-1045-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

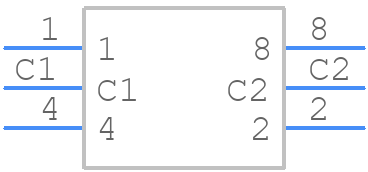

Symbol
RDS-10S-1045-D - Same Sky - PCB symbol
click to zoom

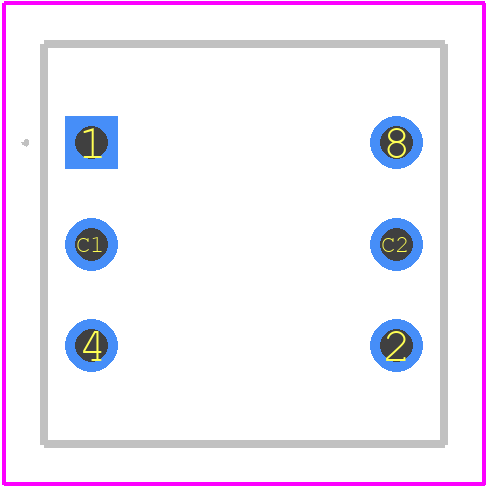

PCB Footprints
RDS-10S-1045-D - Same Sky PCB footprint - Other - Other - RDS-10S-1045-D-1
click to zoom
3D Models
RDS-10S-1045-D - Same Sky - 3D model - Other - RDS-10S-1045-D-1
click to zoom

RDS-10S-1045-D Details

  • Manufacturer Part Number:

    RDS-10S-1045-D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    7.7

  • Actuator Material:

    POLYAMIDE9T

  • Actuator Type:

    FLAT TYPE

  • Additional Feature:

    UL

  • Body Breadth:

    10 mm

  • Body Color:

    BLACK

  • Body Height:

    4.5 mm

  • Body Length or Diameter:

    10 mm

  • Contact Current(DC)-Max:

    0.025 A

  • Contact (DC) Max Rating R Load:

    0.025A@24VDC

  • Contact Function:

    BINARY CODED

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    24 V

  • Dielectric Withstand Volts:

    250VAC V

  • Electrical Life:

    10000 Cycle(s)

  • Housing Material:

    POLYAMIDE9T

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYAMIDE9T

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    10

  • Number of Switch Sections:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    6

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    BCD COMPLEMENT

  • Switch Type:

    ROTARY SWITCH

  • Terminal Length:

    0.173 inch

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

RDS-10S-1045-D Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for optimal performance can be found in the application note provided by Same Sky, which includes guidelines for thermal pad design, component placement, and heat sink attachment.
  • To ensure reliable operation in high-vibration environments, it is recommended to follow the mounting and screw torque guidelines provided in the datasheet, and to consider additional mechanical reinforcement or potting compounds to secure the device.
  • The RDS-10S-1045-D is commonly used in industrial power supplies, motor control systems, and renewable energy systems, particularly in applications requiring high reliability, efficiency, and compact design.
  • Troubleshooting common issues can be done by consulting the troubleshooting guide provided in the datasheet, which includes steps to identify and resolve issues related to thermal management, input voltage, and output loading.
  • The recommended input and output filtering components for EMI compliance can be found in the application note provided by Same Sky, which includes guidelines for selecting and implementing EMI filters, as well as layout considerations for minimizing radiated emissions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RDS-10S-1045-D Overview

Use the download button to access the RDS-10S-1045-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDS-1, or try a keyword search, such as Rotary Switches
