RDS-16S-1045-D - Same Sky

RDS-16S-1045-D Details

• Manufacturer Part Number:

  RDS-16S-1045-D

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.20

• Manufacturer:

  Same Sky

• YTEOL:

  7.7

• Actuator Material:

  POLYAMIDE9T

• Actuator Type:

  FLAT TYPE

• Additional Feature:

  UL

• Body Breadth:

  10 mm

• Body Color:

  BLACK

• Body Height:

  4.5 mm

• Body Length or Diameter:

  10 mm

• Contact Current(DC)-Max:

  0.025 A

• Contact (DC) Max Rating R Load:

  0.025A@24VDC

• Contact Function:

  BINARY CODED

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  250VAC V

• Electrical Life:

  10000 Cycle(s)

• Housing Material:

  POLYAMIDE9T

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYAMIDE9T

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  16

• Number of Switch Sections:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

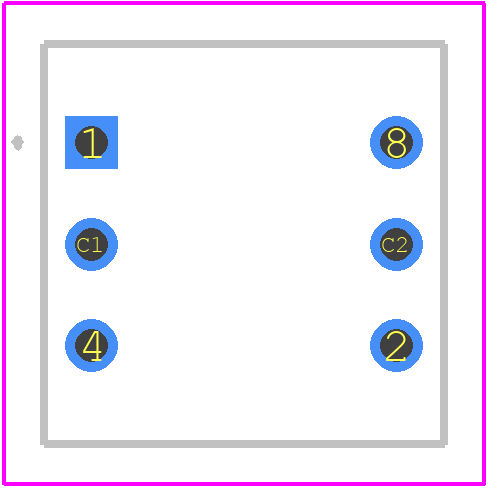

• PCB Hole Count:

  6

• Packing Method:

  TUBE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  BCH COMPLEMENT

• Switch Type:

  ROTARY SWITCH

• Terminal Length:

  0.173 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
