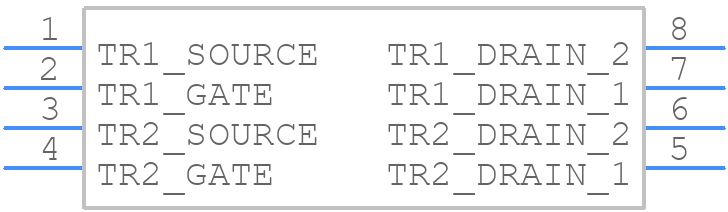

RDS035L03 - ROHM Semiconductor

RDS035L03 Details

• Manufacturer Part Number:

  RDS035L03

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  SOT

• Package Description:

  SOP-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  3

• Configuration:

  SEPARATE, 2 ELEMENTS

• DS Breakdown Voltage-Min:

  30 V

• Drain Current-Max (ID):

  3.5 A

• Drain-source On Resistance-Max:

  0.172 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e2

• Moisture Sensitivity Level:

  1

• Number of Elements:

  2

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  2 W

• Pulsed Drain Current-Max (IDM):

  14 A

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Copper (Sn/Cu)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
