Microchip provides a recommended PCB layout in the device's datasheet, application note, or design files. It's essential to follow these guidelines to ensure proper operation, minimize noise, and reduce electromagnetic interference (EMI).
To minimize high-frequency noise, ensure proper PCB layout, decoupling, and grounding. Add bypass capacitors between VCC and GND, and use a low-ESR capacitor for the VCC filter. Additionally, use a shielded cable for the output signal and consider adding a common-mode choke.
The RE46C105S14F is rated for operation from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
The RE46C105S14F is a surface-mount device, and its reliability may be affected by high-vibration environments. Ensure proper PCB mounting, and consider using a vibration-resistant mounting method, such as underfill or potting, to minimize the risk of mechanical failure.
To troubleshoot issues, start by verifying the device's power and clock signals. Check the input and output signals using an oscilloscope, and ensure proper PCB layout and decoupling capacitors. Consult the device's datasheet, application notes, and Microchip's technical support resources for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
re46c105s14f Overview

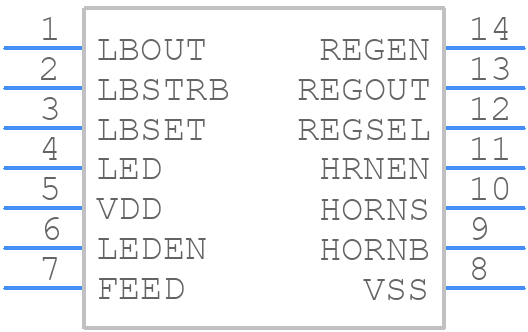

Use the download button to access the re46c105s14f schematic symbol, PCB footprint, and 3D model.
