Microchip provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity. Additionally, consider using a 4-layer PCB with a solid ground plane and a separate power plane to minimize noise and EMI.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and thermal management guidelines in the datasheet. Implement proper heat sinking, and consider using thermal interface materials (TIMs) to improve heat transfer. Also, ensure that the device is operated within its specified temperature range and that the junction temperature (Tj) does not exceed the maximum rating.
Potential sources of noise and EMI in the RE46C108S8F include switching noise, clock noise, and power supply noise. To mitigate these, use proper PCB layout techniques, such as separating analog and digital signals, using shielded cables, and implementing noise filters. Additionally, consider using a low-dropout regulator (LDO) to regulate the power supply and reduce noise.
To troubleshoot issues with the RE46C108S8F, start by reviewing the datasheet and application notes to ensure that the device is being used within its specified operating conditions. Use oscilloscopes and logic analyzers to debug the device's signals and identify potential issues. Check for proper power supply, clock signal, and input/output connections. If the issue persists, consult Microchip's technical support resources or contact a local representative for assistance.
Yes, when using the RE46C108S8F in a safety-critical or high-reliability application, it's essential to follow Microchip's guidelines for functional safety and reliability. Implement redundant systems, error detection and correction mechanisms, and fault-tolerant design principles. Additionally, consider using safety-certified components and following industry standards such as IEC 61508 or ISO 26262.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
re46c108s8f Overview

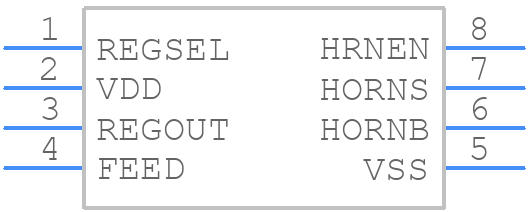

Use the download button to access the re46c108s8f schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like re46c,
or try a keyword search, such as Other Signal Circuits
