Microchip provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI). Key considerations include keeping the input and output traces short, using a solid ground plane, and placing decoupling capacitors close to the device.
To ensure reliable operation in high-temperature environments, it's crucial to consider the device's thermal characteristics, such as its junction temperature (Tj) and thermal resistance (Rthja). Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or thermal interface material. Additionally, follow the recommended operating conditions and derating guidelines provided in the datasheet.
To minimize EMI, use a multi-layer PCB with a solid ground plane, and place EMI filters (e.g., ferrite beads, chokes, or capacitors) on the input and output lines. Shielding the device and its associated components with a metal enclosure or shielded cables can also help reduce EMI. Follow the recommended layout and component placement guidelines in the datasheet and application notes.
To troubleshoot issues with the RE46C165S16F, start by reviewing the datasheet and application notes to ensure correct usage and configuration. Verify the power supply voltage, clock frequency, and input/output signal integrity. Use oscilloscopes or logic analyzers to debug the device's behavior. If issues persist, consult Microchip's technical support resources, such as forums, knowledge bases, or direct support channels.
When using the RE46C165S16F in a redundant or fault-tolerant system, consider the device's built-in features, such as its internal clock oscillator and watchdog timer. Ensure that the system design takes into account the device's fault detection and correction mechanisms. Additionally, implement redundant power supplies, clock sources, and communication channels to minimize single points of failure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RE46C165S16F Overview

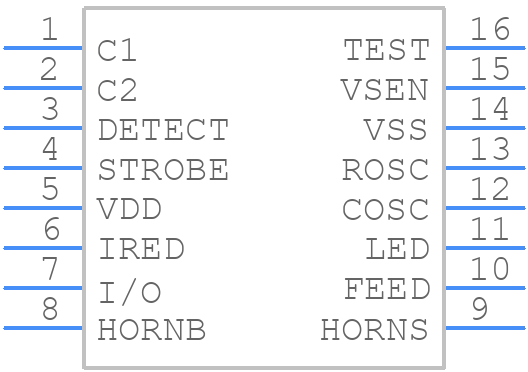

Use the download button to access the RE46C165S16F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RE46C,
or try a keyword search, such as Other Sensors/Transducers
