Microchip provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI). Key considerations include keeping the analog and digital grounds separate, using a solid ground plane, and placing decoupling capacitors close to the device.
To ensure proper configuration, carefully review the datasheet and application notes. Pay attention to the device's operating modes, pin configurations, and register settings. Microchip also provides software development tools, such as the MPLAB X IDE, that can help with configuration and debugging. Additionally, consult with Microchip's technical support or online forums for guidance specific to your application.
The RE46C166S16F has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's essential to manage heat dissipation. Use thermal vias, heat sinks, or thermal pads to dissipate heat. Also, consider the device's power consumption, ambient temperature, and airflow in your system design. Microchip provides thermal management guidelines in the datasheet and application notes.
To troubleshoot issues, start by reviewing the datasheet and application notes to ensure proper configuration and operation. Use Microchip's software development tools, such as the MPLAB X IDE, to debug and analyze the device's behavior. Consult online forums, technical support, and Microchip's knowledge base for guidance on common issues and solutions. Additionally, consider using oscilloscopes, logic analyzers, or other test equipment to diagnose problems.
Yes, the RE46C166S16F is susceptible to electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues. To minimize EMI/EMC, follow Microchip's guidelines for PCB layout, grounding, and shielding. Use EMI filters, ferrite beads, or other noise-reducing components as needed. Ensure that your system design meets relevant EMC standards and regulations, such as FCC, CE, or UL.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RE46C166S16F Overview

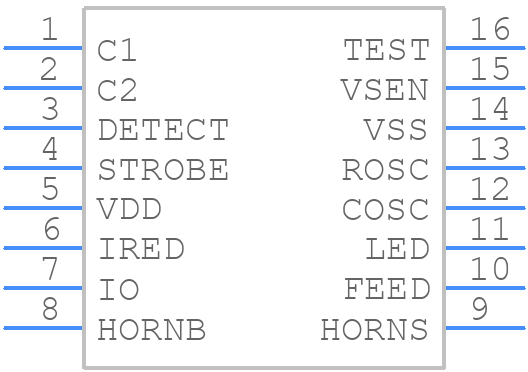

Use the download button to access the RE46C166S16F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RE46C,
or try a keyword search, such as Other Sensors/Transducers
