RE46C317S8F - Microchip

Description: Microchip RE46C317S8F, Piezoelectric Driver, 2 → 5V, 8-Pin, SOIC

Download RE46C317S8F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

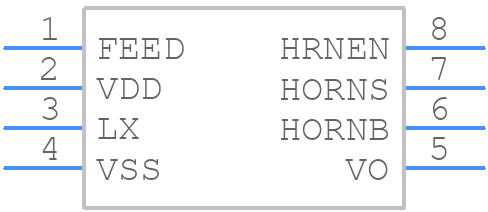

RE46C317S8F - Microchip - PCB symbol
click to zoom
PCB Footprints
RE46C317S8F - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SOIC)
click to zoom
3D Models
RE46C317S8F - Microchip - 3D model - Small Outline Packages - (SOIC)
click to zoom

RE46C317S8F Details

  • Manufacturer Part Number:

    RE46C317S8F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3.90 MM WIDTH, LEAD FREE, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

RE46C317S8F Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the RE46C317S8F datasheet (section 6.1) and in the application note AN954. It's essential to follow these guidelines to minimize noise, ensure proper grounding, and optimize signal integrity.
  • The RE46C317S8F requires a 32.768 kHz crystal oscillator. When selecting a crystal, consider factors such as frequency tolerance, load capacitance, and equivalent series resistance (ESR). Microchip recommends using a crystal with a frequency tolerance of ±20 ppm and a load capacitance of 12.5 pF.
  • The RE46C317S8F has an industrial temperature range of -40°C to +85°C. However, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. Always check the datasheet and application notes for specific temperature-related considerations.
  • A reliable reset circuit is crucial for the RE46C317S8F. Microchip recommends using a reset circuit with a capacitor and a resistor connected to the VCC pin. The application note AN954 provides a detailed example of a reset circuit implementation.
  • To ensure EMC and EMI compliance, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and consider using filters and chokes to minimize noise. Microchip provides EMC and EMI guidelines in the RE46C317S8F datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RE46C317S8F Overview

Use the download button to access the RE46C317S8F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RE46C, or try a keyword search, such as Other Signal Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
