RE46C800SS20 - Microchip

Description: MICROCHIP - RE46C800SS20 - IC, CARBON MONOXIDE DETECTOR, SSOP-20

Download RE46C800SS20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

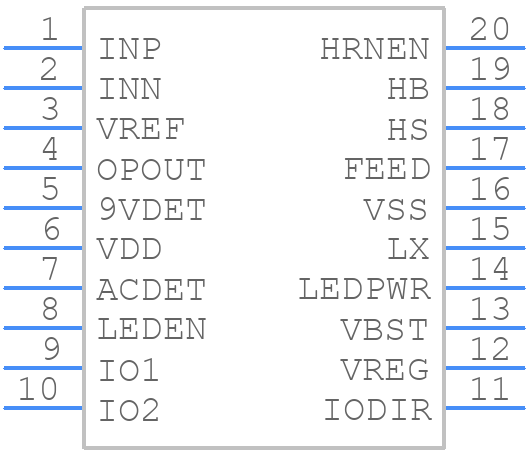

RE46C800SS20 - Microchip - PCB symbol
click to zoom
PCB Footprints
RE46C800SS20 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - RE46C800SS20
click to zoom
3D Models
RE46C800SS20 - Microchip - 3D model - Small Outline Packages - RE46C800SS20
click to zoom

RE46C800SS20 Details

  • Manufacturer Part Number:

    RE46C800SS20

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5.3 mm

RE46C800SS20 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the RE46C800SS20 datasheet (section 5.1) and in the application note AN954 (section 4). It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The input capacitor value depends on the input voltage, output voltage, and desired ripple voltage. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the input voltage. Consult the datasheet (section 5.2) and application notes for more specific guidance.
  • The RE46C800SS20 is rated for operation up to 125°C (TJ) junction temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 85°C to ensure a safe margin. Consult the datasheet (section 4.1) for thermal management guidelines.
  • To ensure EMC compliance, follow the guidelines in the datasheet (section 5.3) and application notes. Implement proper PCB layout, use shielding, and add filtering components as necessary. Additionally, consult relevant EMC standards and regulations for your specific application.
  • The output capacitor value and type depend on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to use a low-ESR capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the output voltage. Consult the datasheet (section 5.2) and application notes for more specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RE46C800SS20 Overview

Use the download button to access the RE46C800SS20 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RE46C, or try a keyword search, such as Other Signal Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
