READ2606GSP#GC0 - Renesas Electronics

Description: High Drivability & High Slew Rate, Output Full Range High Voltage, Low Power Consumption CMOS Dual Operational Amplifier -0.3 to +36V +4.5V to +32V

Download READ2606GSP#GC0 Model

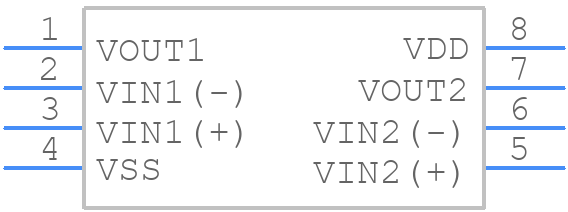

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
READ2606GSP#GC0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PTSP0008JD-A
click to zoom
3D Models
READ2606GSP#GC0 - Renesas Electronics  - 3D model - Small Outline Packages - PTSP0008JD-A
click to zoom

READ2606GSP#GC0 Details

  • Manufacturer Part Number:

    READ2606GSP#GC0

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000001 µA

  • Bias Current-Max (IIB) @25C:

    0.000001 µA

  • Common-mode Reject Ratio-Min:

    55 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    12000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.4 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    8 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    6000

  • Voltage Gain-Min:

    1000

  • Wideband:

    NO

  • Width:

    3.15 mm
