REC10-2415DRW/H2/A/M footprint, schematic symbol and 3D model by RECOM Power

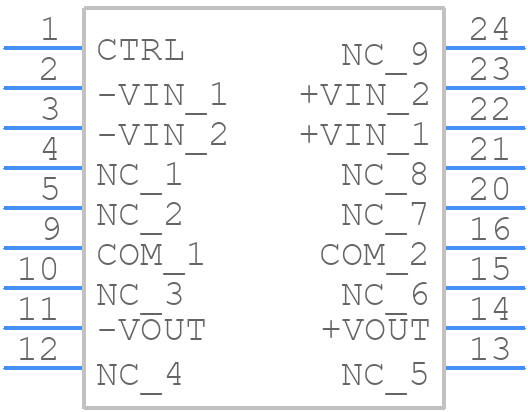

Symbol

click to zoom

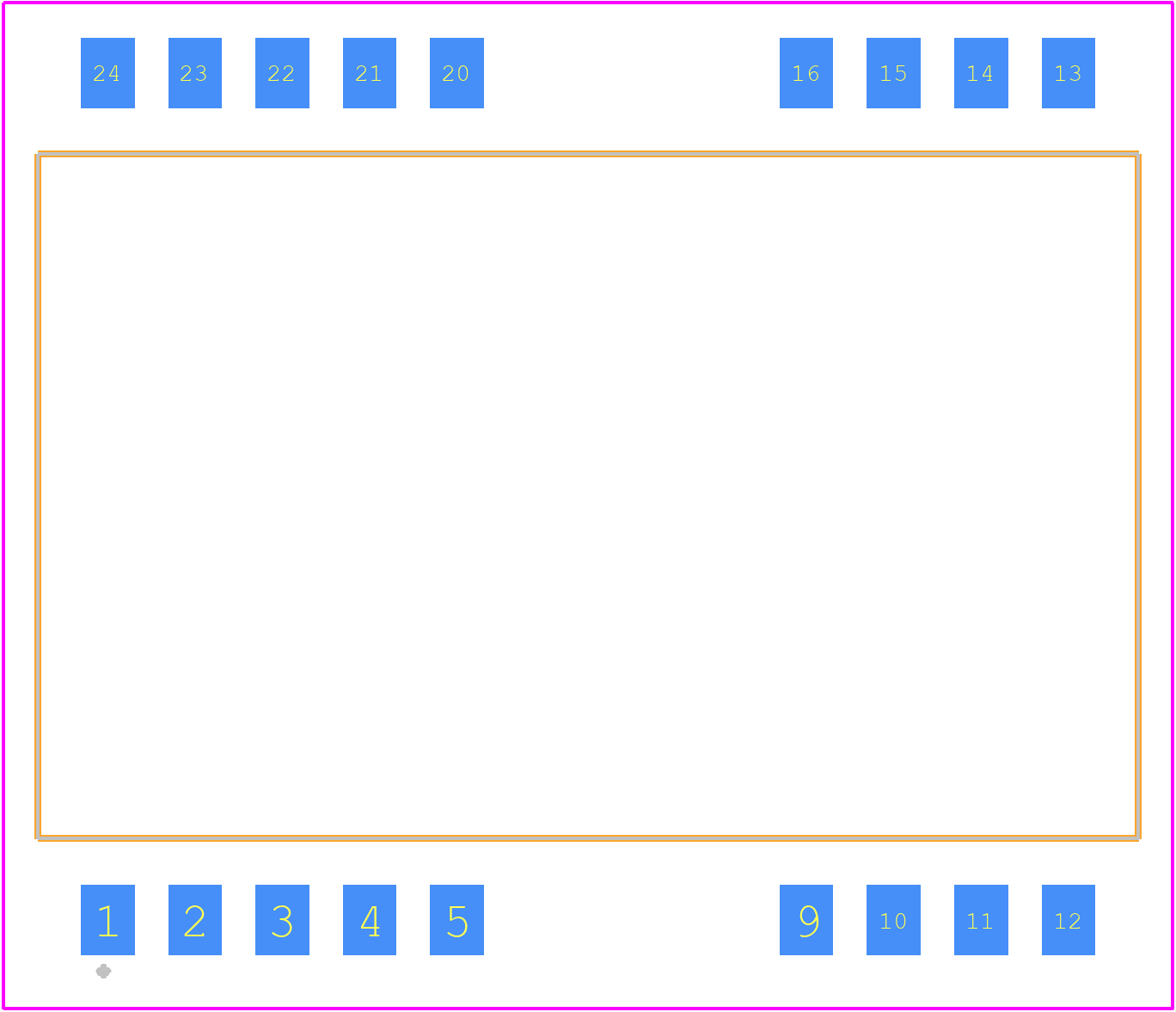

PCB Footprints

REC10-2415DRW/H2/A/M - RECOM Power PCB footprint - Other - Other - REC10-2415DRW/H2/A/M

click to zoom

3D Models

REC10-2415DRW/H2/A/M - RECOM Power - 3D model - Other - REC10-2415DRW/H2/A/M

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for REC10-2415DRW/H2/A/M
Part Number REC10-2415DRW/H2/A/M
Manufacturer RECOM Power
Pin Count 18
Part Category Power Supply
Package Category Other
Footprint Name Other - REC10-2415DRW/H2/A/M
Released Date Dec 18, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

REC10-2415DRW/H2/A/M Details

Manufacturer Part Number:
REC10-2415DRW/H2/A/M
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP, DIP9/24,.6
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
5
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-MDIP-T9
Length:
32 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
9
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.333 A
Output Voltage-Max:
15.225 V
Output Voltage-Min:
14.775 V
Output Voltage-Nom:
15 V
Package Body Material:
METAL
Package Code:
DIP
Package Equivalence Code:
DIP9/24,.6
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Temperature Grade:
OTHER
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
10 W
Width:
20.3 mm

REC10-2415DRW/H2/A/M Frequently Asked Questions (FAQs)

The maximum capacitance on the output is limited by the stability of the converter. RECOM recommends a maximum capacitance of 220uF to ensure stability. However, it's recommended to consult with RECOM's application engineers for specific guidance on output capacitance selection.
The REC10-2415DRW/H2/A/M is rated for operation up to 80°C ambient temperature. However, the converter's performance and reliability may degrade at higher temperatures. It's recommended to derate the output power and consult with RECOM's application engineers for specific guidance on high-temperature operation.
The REC10-2415DRW/H2/A/M is designed to meet CISPR 22 Class B and EN 55022 Class B EMC standards. To ensure EMC, RECOM recommends following proper PCB layout and design guidelines, using a metal enclosure, and adding external filtering components as needed.
RECOM recommends using a fuse with a rating of 2-3A, slow-blow type, to protect the converter from input overcurrent conditions.
Yes, multiple REC10-2415DRW/H2/A/M converters can be paralleled to increase the output power. However, it's recommended to consult with RECOM's application engineers for specific guidance on parallel operation, including output voltage synchronization and current sharing.
