RECOM Power Inc recommends a PCB layout with a large copper area connected to the module's thermal pad, and a minimum of 2oz copper thickness to ensure good heat dissipation. A thermal via array under the module can also help to improve thermal performance.
Yes, the REC15E-4824SZ is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screw torque guidelines to ensure reliable operation.
To ensure EMC, RECOM Power Inc recommends using a metal enclosure, keeping the module away from sensitive components, and using proper filtering and shielding techniques. Additionally, the module's output should be decoupled with a capacitor to reduce electromagnetic interference (EMI).
RECOM Power Inc recommends using a fuse with a rating of 2-3 times the maximum input current to ensure safe and reliable operation. The fuse should be placed as close to the input terminals as possible to minimize the risk of electrical shock.
Yes, the REC15E-4824SZ can be used in redundant or parallel configurations to achieve higher power ratings or improve system reliability. However, it's essential to follow proper design guidelines and ensure that the modules are properly synchronized and isolated to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REC15E-4824SZ Overview

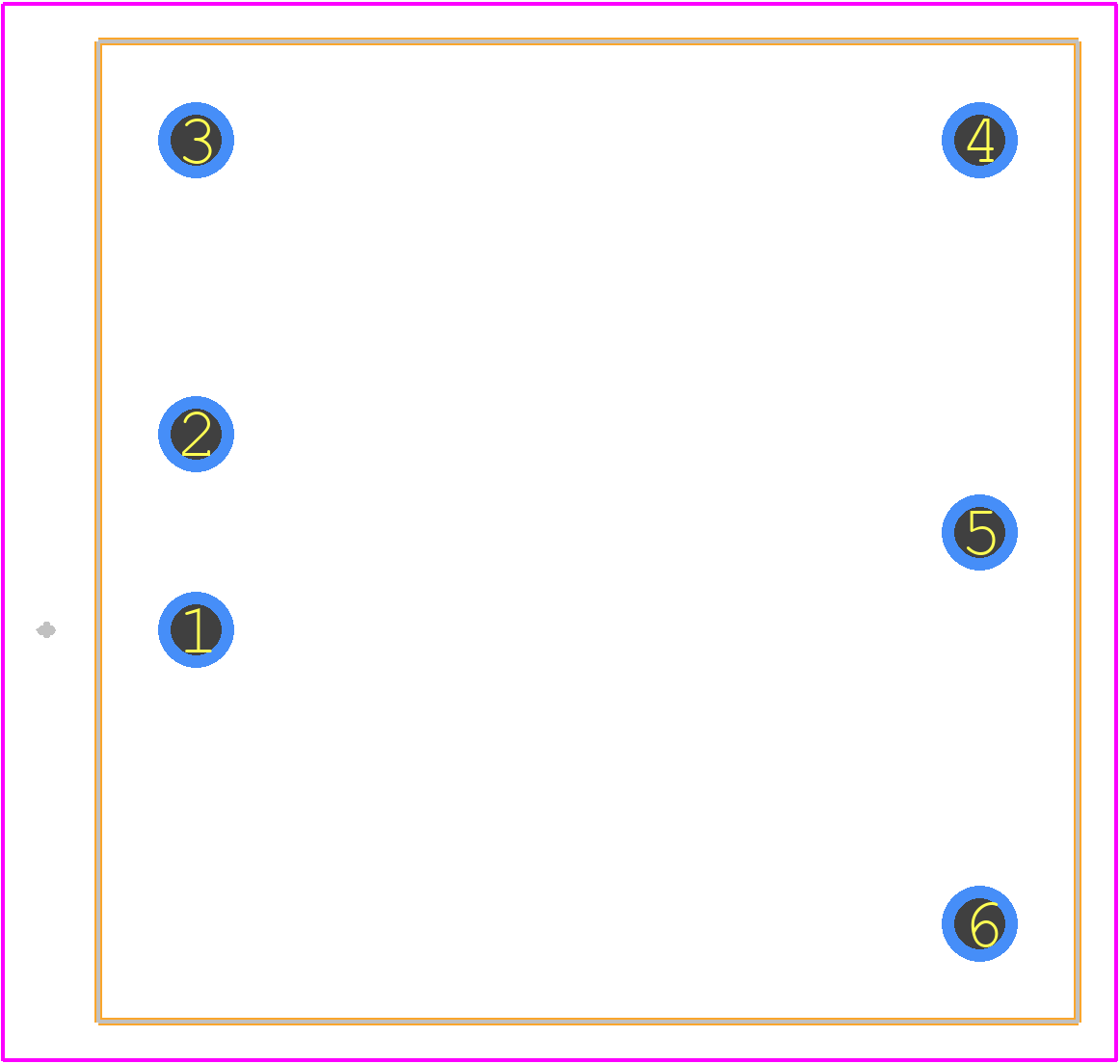

Use the download button to access the REC15E-4824SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REC15,
or try a keyword search, such as Power Supply Modules
