REC20-2415DZ - RECOM Power

Description: Recom 20W Isolated DC-DC Converter, Vin 9 → 36 V dc, Vout ±15V dc, I/O isolation 1.6kV dc

Download REC20-2415DZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

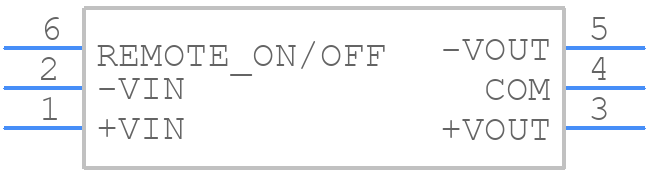

Symbol
REC20-2415DZ - RECOM Power - PCB symbol
click to zoom
PCB Footprints
REC20-2415DZ - RECOM Power PCB footprint - Other - Other - REC20-2415DZ
click to zoom
3D Models
REC20-2415DZ - RECOM Power - 3D model - Other - REC20-2415DZ
click to zoom

REC20-2415DZ Details

  • Manufacturer Part Number:

    REC20-2415DZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PACKAGE-6

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO HAS OUTPUT VOLTAGE-NOM=-15V

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-P6

  • Length:

    50.8 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Output Voltage-Max:

    15.15 V

  • Output Voltage-Min:

    14.85 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    11 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

REC20-2415DZ Frequently Asked Questions (FAQs)

  • RECOM Power Inc recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
  • Yes, the REC20-2415DZ is designed to withstand high-vibration environments. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure the module is securely attached to the PCB and can withstand vibrations up to 10G.
  • The maximum capacitance load that can be connected to the output of the REC20-2415DZ is 47uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • Yes, the REC20-2415DZ can be used in a redundant configuration. However, it's recommended to use a diode or a switch to isolate the modules from each other to prevent back-feeding and ensure reliable operation.
  • The recommended input fuse rating for the REC20-2415DZ is 2A slow-blow or 1A fast-acting fuse. This ensures that the module is protected from input overcurrent conditions.
