RECOM provides a recommended PCB layout in their application note AN-20, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal heat dissipation.
Yes, the REC3-1205DRW/H4/A is designed to meet the requirements of IEC 60068-2-6 for vibration resistance. However, it's recommended to consult with RECOM's application engineers to ensure the converter meets the specific vibration requirements of your application.
RECOM provides EMC guidelines in their application note AN-19, which includes recommendations for filtering, shielding, and layout to minimize electromagnetic interference (EMI) and ensure compliance with relevant EMC standards.
The maximum output capacitance is not explicitly stated in the datasheet, but RECOM recommends limiting the output capacitance to 10uF to ensure stability and prevent oscillations. However, it's recommended to consult with RECOM's application engineers to determine the optimal output capacitance for your specific application.
The REC3-1205DRW/H4/A is designed to operate up to 5,000 meters above sea level. However, it's recommended to consult with RECOM's application engineers to ensure the converter meets the specific requirements of your high-altitude application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REC3-1205DRW/H4/A Overview

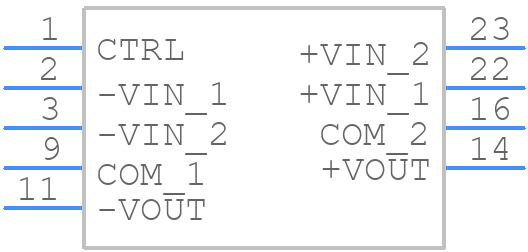

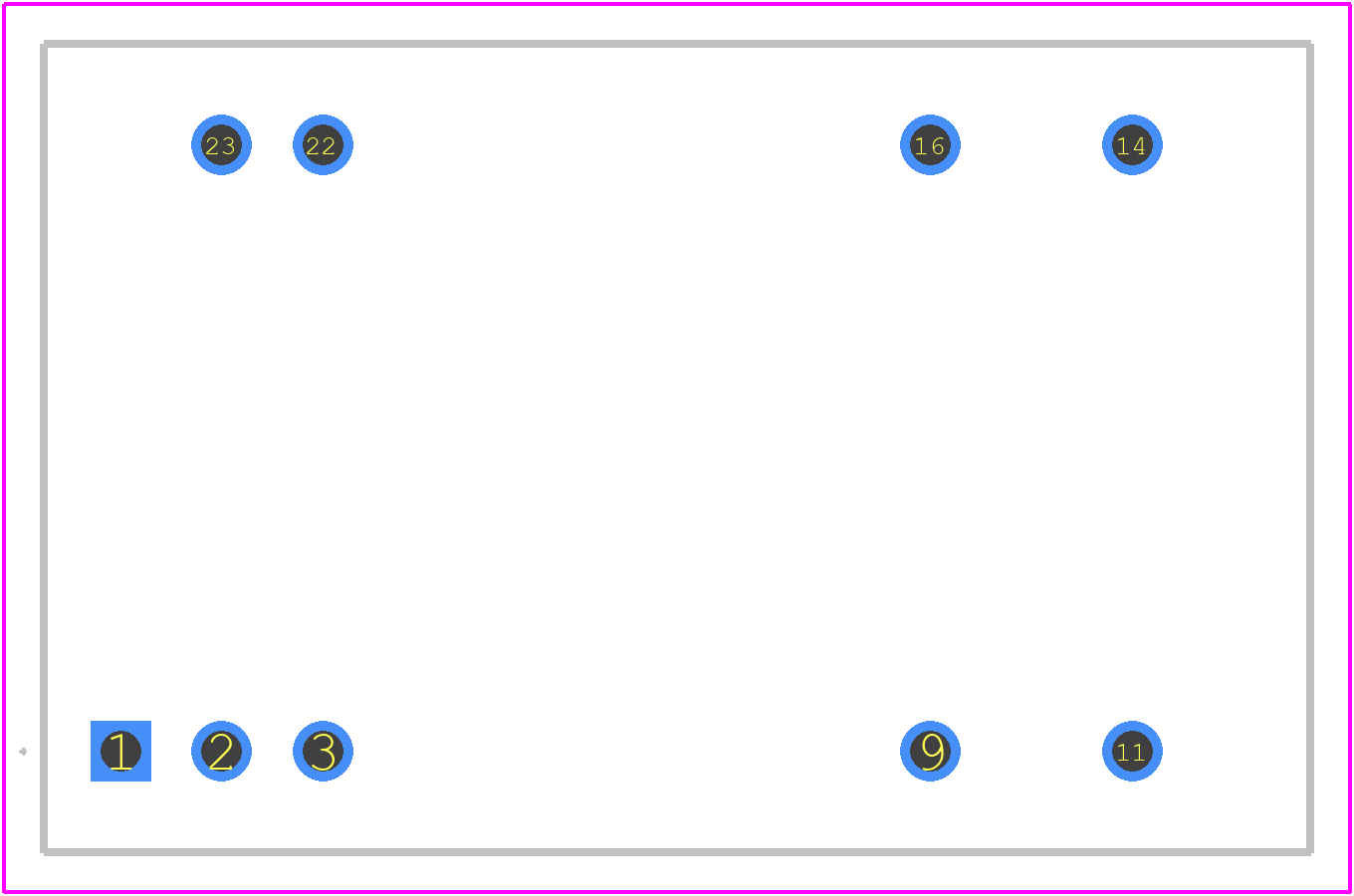

Use the download button to access the REC3-1205DRW/H4/A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REC3-,
or try a keyword search
