RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the REC3-1212DR/H1 is designed to withstand high vibrations. It is compliant with IEC 60068-2-6, which specifies the vibration test requirements for electrical components. However, it's recommended to consult with RECOM's application engineers to ensure the module meets the specific vibration requirements of your application.
To ensure reliability in a humid environment, RECOM recommends conformal coating the module and following proper storage and handling procedures. Additionally, the module should be powered up and down slowly to prevent moisture ingress. It's also recommended to consult with RECOM's application engineers for specific guidance on humidity-related design considerations.
The maximum capacitance load that can be connected to the output of the REC3-1212DR/H1 is 10,000 μF. Exceeding this value may cause instability or oscillation in the output voltage. It's recommended to consult with RECOM's application engineers to determine the suitable output capacitance for your specific application.
Yes, the REC3-1212DR/H1 can be used in a redundant configuration to achieve high availability and reliability. However, it's recommended to consult with RECOM's application engineers to ensure the correct implementation of the redundant configuration and to discuss any specific requirements or considerations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REC3-1212DR/H1 Overview

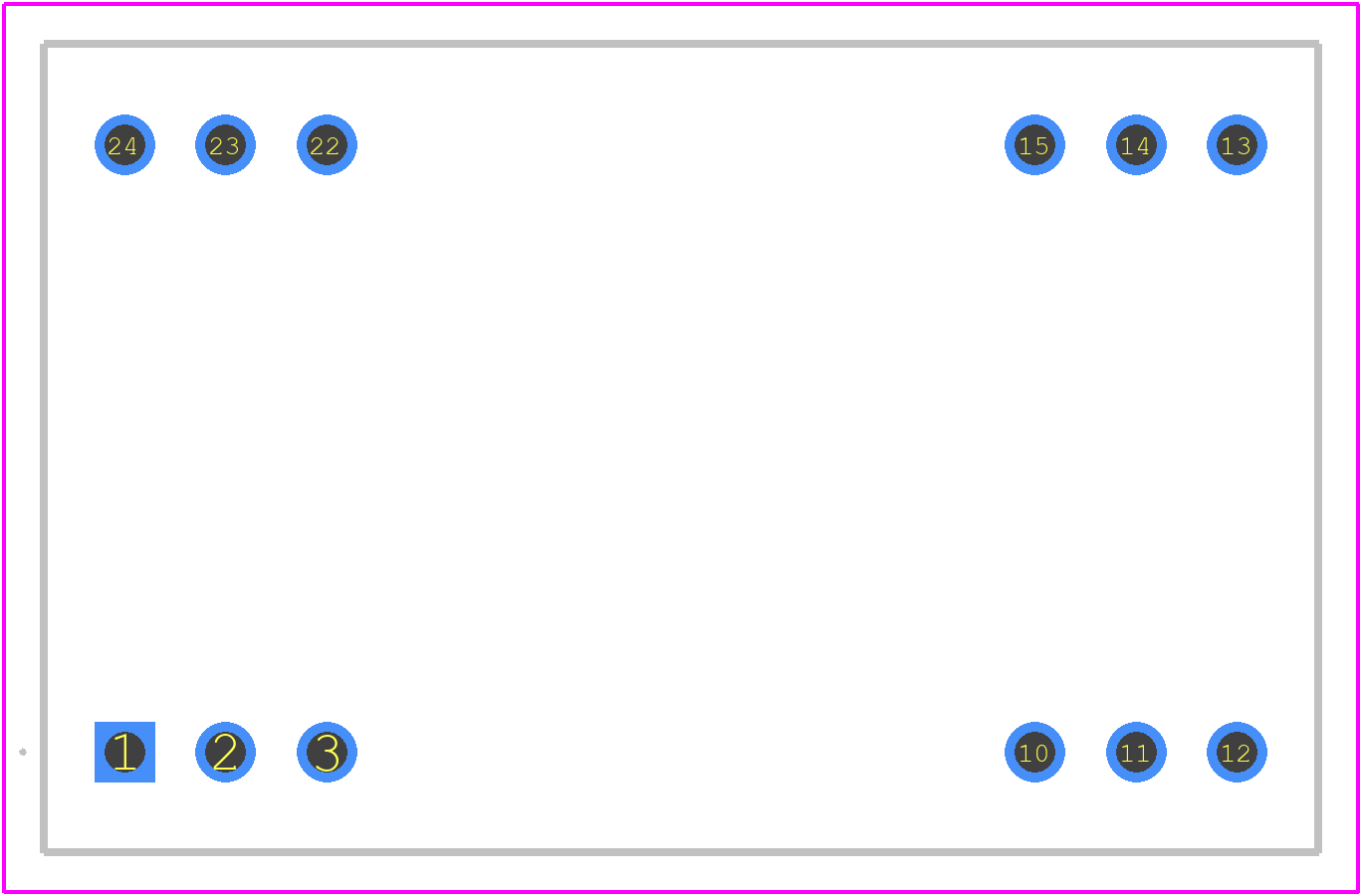

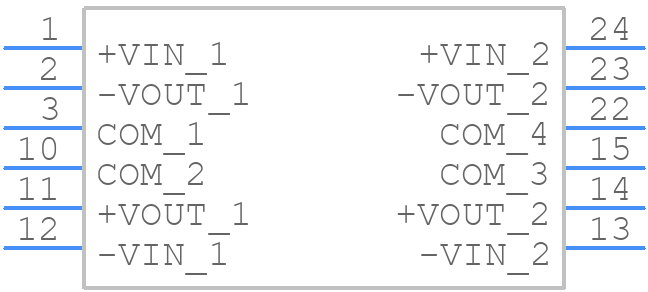

Use the download button to access the REC3-1212DR/H1 schematic symbol, PCB footprint, and 3D model.
