RECOM Power Inc recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the REC3-2405DRWZ/H6/A is designed to withstand high vibrations. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is rigid enough to prevent flexing or cracking. Additionally, the module's connectors and pins should be securely fastened to prevent damage.
To ensure reliability in high-temperature environments, it's crucial to maintain a safe operating temperature range (up to 80°C for this module). Ensure good airflow, use a heat sink if necessary, and avoid overheating the module. Also, follow the recommended derating curves for output power and input voltage to prevent overheating.
RECOM Power Inc recommends using a low-ESR ceramic capacitor with a value of 10-22 μF, rated for the input voltage range (36-75 VDC). The capacitor should be placed as close as possible to the module's input pins to minimize noise and ripple.
Yes, the REC3-2405DRWZ/H6/A can be used in a redundant or parallel configuration to achieve higher power output or redundancy. However, it's essential to ensure that the modules are properly synchronized and that the output voltages are matched to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REC3-2405DRWZ/H6/A Overview

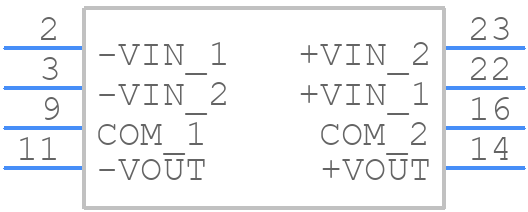

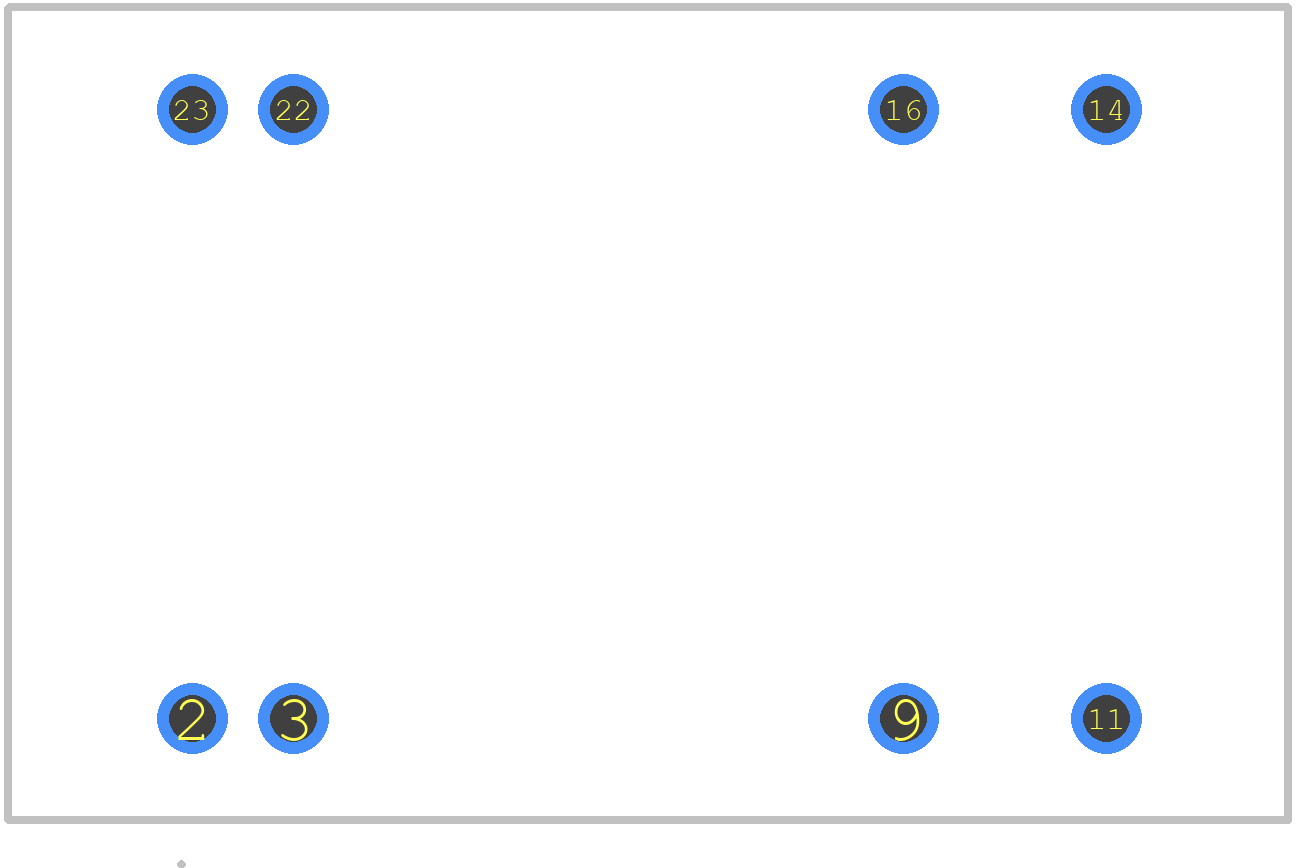

Use the download button to access the REC3-2405DRWZ/H6/A schematic symbol, PCB footprint, and 3D model.
