REC3-2412DRWZ/H6/A Frequently Asked Questions (FAQs)

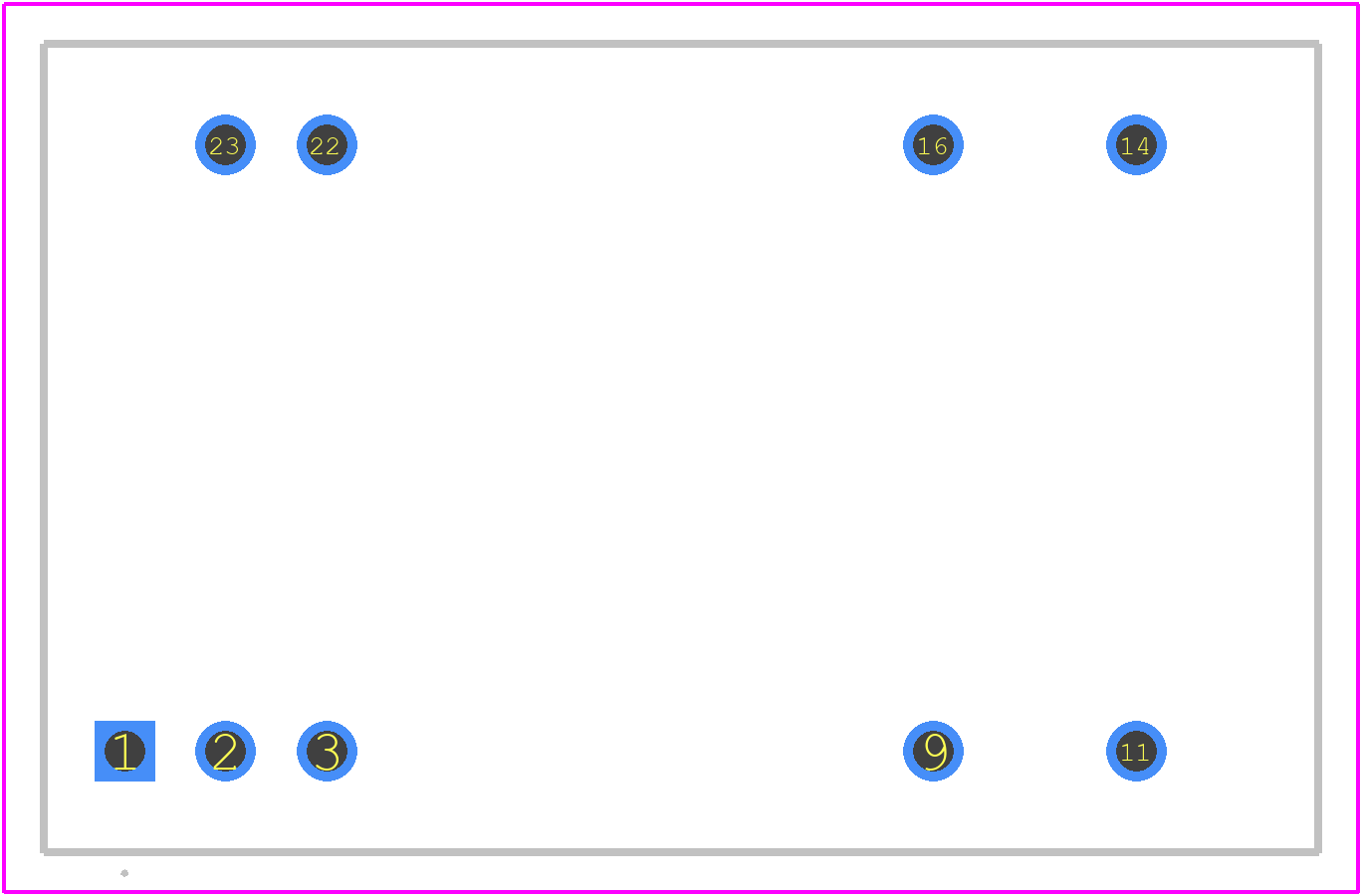

• What is the recommended PCB layout for optimal thermal performance?
  RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
• Can I use this module in a high-vibration environment?
  Yes, the REC3-2412DRWZ/H6/A is designed to withstand high vibrations and meets the IEC 60068-2-6 standard for vibration resistance. However, it's recommended to follow proper mounting and screw torque procedures to ensure the module remains securely attached to the PCB.
• How do I ensure the module's input voltage stays within the recommended range?
  Use a suitable input voltage regulator or a voltage stabilizer to ensure the input voltage stays within the recommended range of 36-72VDC. Additionally, consider adding input voltage monitoring and protection circuits to prevent damage from voltage surges or drops.
• What is the recommended fuse rating for overcurrent protection?
  RECOM recommends using a fuse with a rating of 5-10A, depending on the specific application and maximum expected current. The fuse should be placed in series with the input voltage line to protect the module from overcurrent conditions.
• Can I use this module in a humid or wet environment?
  The REC3-2412DRWZ/H6/A has a conformal coating to protect it from humidity, but it's not designed for immersion in water or exposure to high-pressure washes. If the module will be used in a humid or wet environment, consider adding additional protection measures such as a sealed enclosure or conformal coating.
