The maximum capacitive load is not explicitly stated in the datasheet, but as a general rule, RECOM recommends limiting the output capacitance to 10-20 times the output capacitance of the converter itself, which is 100nF in this case. So, the maximum capacitive load would be around 1-2uF.
While the datasheet specifies an operating temperature range of -40°C to +85°C, the converter can be derated for use in higher temperature environments. However, it's recommended to consult with RECOM's application engineers to determine the maximum safe operating temperature and any necessary derating.
The REC3-2412SRW/H2/A is certified to various safety standards, including UL60950-1, EN60950-1, and IEC60950-1. However, the specific certification requirements for your application may vary. It's recommended to consult with RECOM's application engineers to ensure the converter meets the necessary safety certifications for your specific use case.
Yes, the REC3-2412SRW/H2/A can be used in a redundant or parallel configuration, but it's recommended to consult with RECOM's application engineers to ensure proper implementation and to discuss any necessary external components or circuitry.
RECOM provides a recommended PCB layout and thermal management guide for the REC3-2412SRW/H2/A in their application notes. It's essential to follow these guidelines to ensure proper heat dissipation and to minimize electromagnetic interference (EMI).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REC3-2412SRW/H2/A Overview

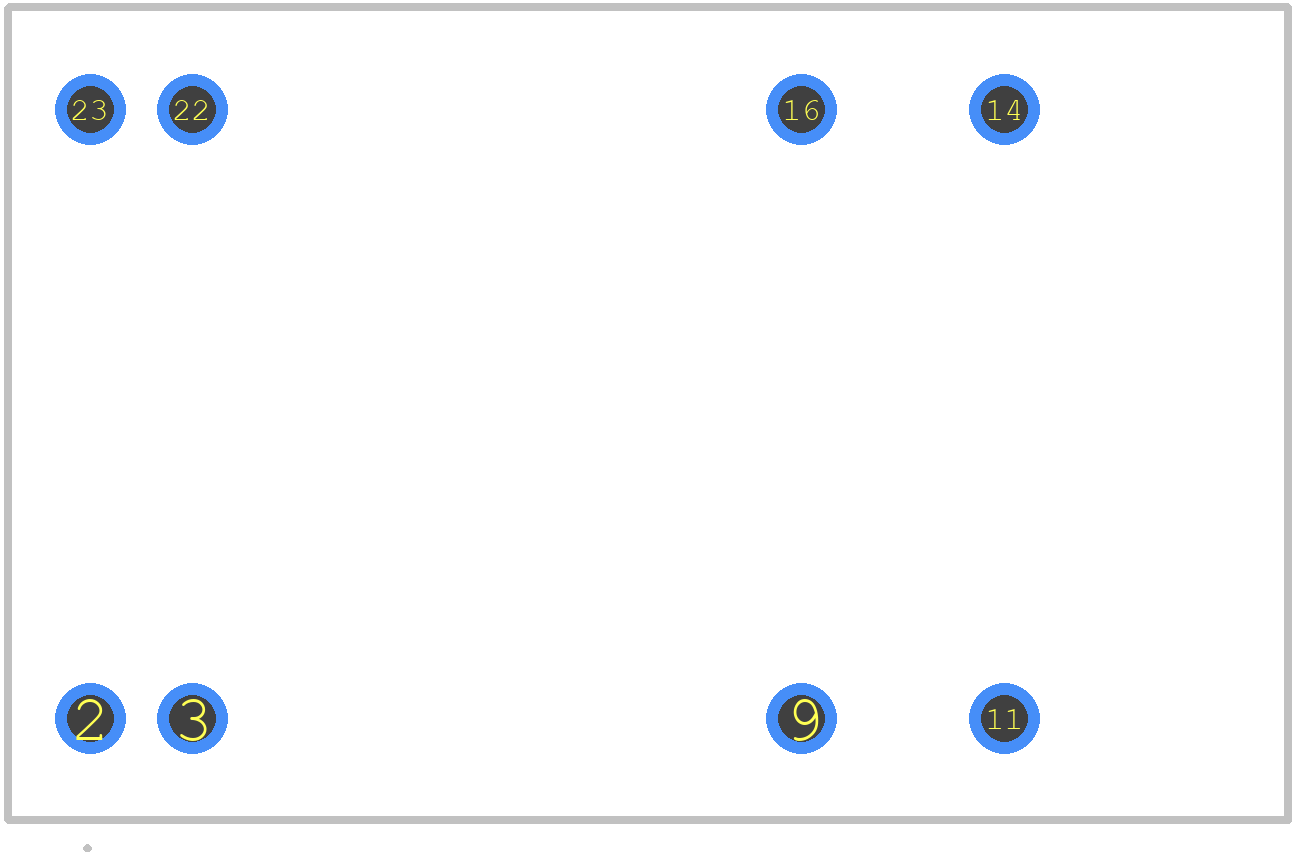

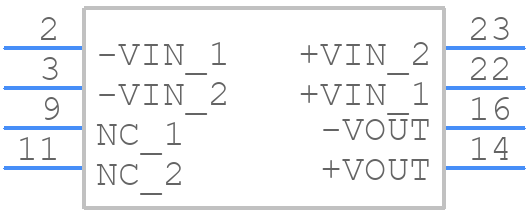

Use the download button to access the REC3-2412SRW/H2/A schematic symbol, PCB footprint, and 3D model.
