The maximum capacitive load is not explicitly stated in the datasheet, but as a general rule, RECOM recommends limiting the output capacitance to 10-20 times the output capacitance of the converter itself, which is 100nF in this case. So, the maximum capacitive load would be around 1-2uF.
The REC3.5-1205DRW/R10/A has a maximum operating temperature of 80°C, but it can be derated for higher temperatures. RECOM recommends derating the output power by 2.5% per degree above 60°C. However, it's recommended to consult with RECOM's application engineers for specific guidance on high-temperature applications.
The REC3.5-1205DRW/R10/A meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, the specific certification requirements may vary depending on the application and region. It's recommended to consult with RECOM's application engineers and review the certification documents to ensure compliance with the required safety standards.
Yes, the REC3.5-1205DRW/R10/A can be used in a redundant configuration to achieve high reliability. However, it's recommended to consult with RECOM's application engineers to ensure that the redundant configuration is properly designed and implemented to meet the specific reliability requirements of the application.
RECOM provides a recommended PCB layout and thermal management guide for the REC3.5-1205DRW/R10/A. It's recommended to follow these guidelines to ensure proper heat dissipation and to minimize electromagnetic interference (EMI).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REC3.5-1205DRW/R10/A Overview

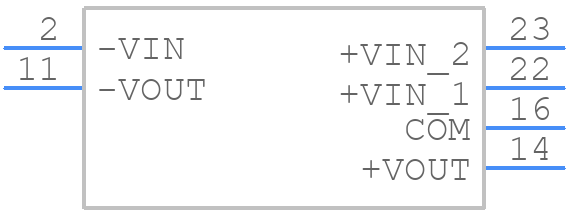

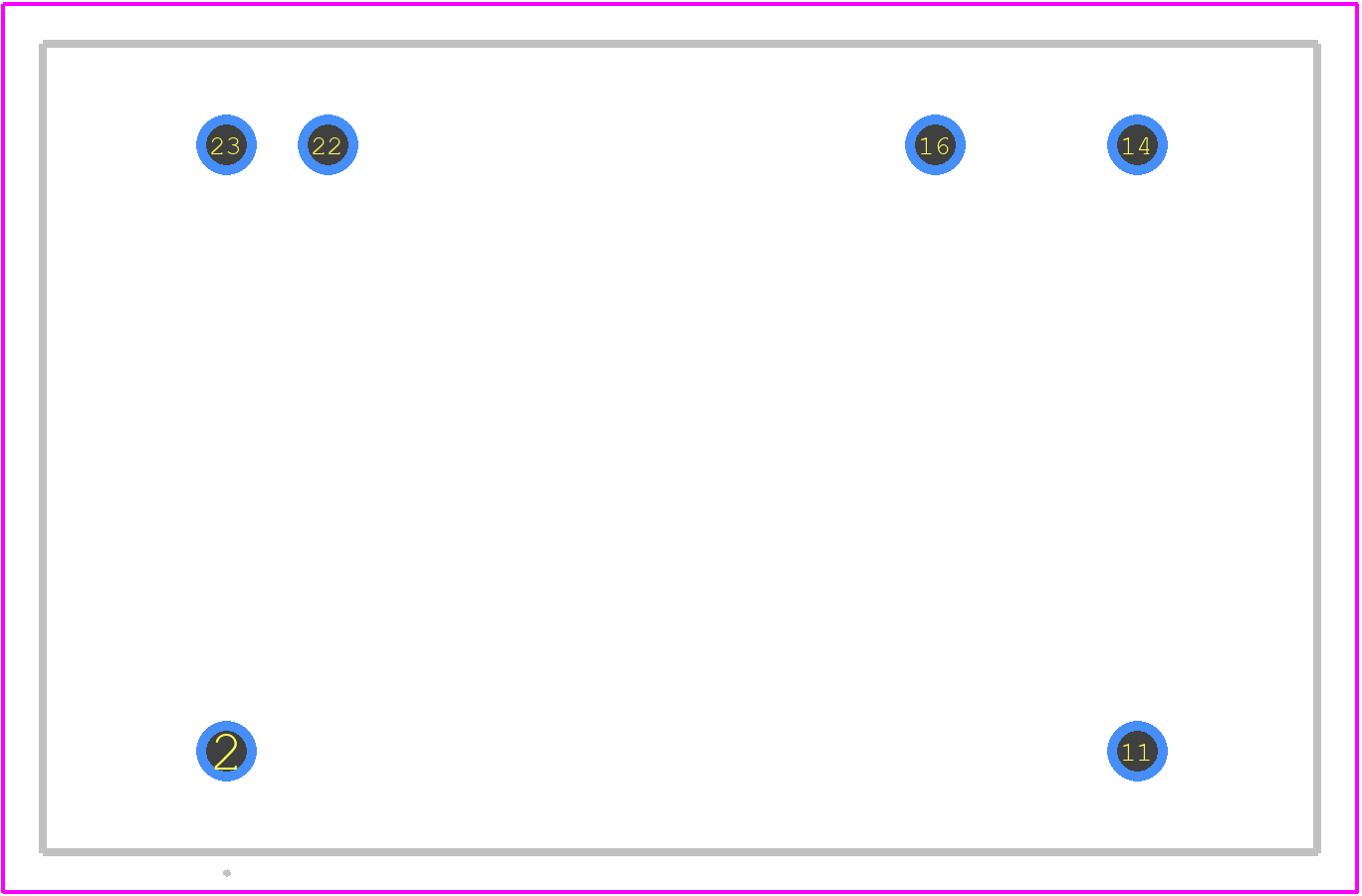

Use the download button to access the REC3.5-1205DRW/R10/A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REC3.,
or try a keyword search, such as Power Supply Modules
