OVER LOAD, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.04242 Vrms
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
7.62 mm
Terminal Position:
DUAL
Total Power Output-Max:
300 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.2 s
Width:
57.9 mm
REC300H-2412SW Frequently Asked Questions (FAQs)
The maximum capacitive load is not explicitly stated in the datasheet, but as a general rule, RECOM recommends limiting the output capacitance to 10-20 times the output capacitance of the converter itself, which is 100nF. So, the maximum capacitive load would be around 1-2uF.
While the datasheet specifies an operating temperature range of -40°C to +85°C, the converter can be derated for use in higher temperature environments. However, it's recommended to consult with RECOM's application engineers to determine the maximum operating temperature and any necessary derating.
The REC300H-2412SW meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, to ensure compliance with specific application requirements, it's recommended to review the certification documents and consult with RECOM's technical support team.
RECOM provides a recommended PCB layout and thermal management guide in their application notes. It's essential to follow these guidelines to ensure proper heat dissipation and minimize electromagnetic interference (EMI).
Yes, the REC300H-2412SW can be used in a redundant or parallel configuration, but it's crucial to follow RECOM's guidelines for synchronization and current sharing to ensure proper operation and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REC300H-2412SW Overview

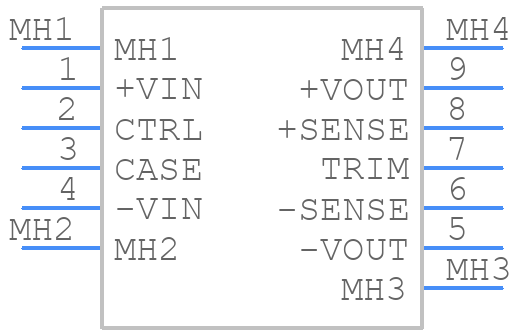

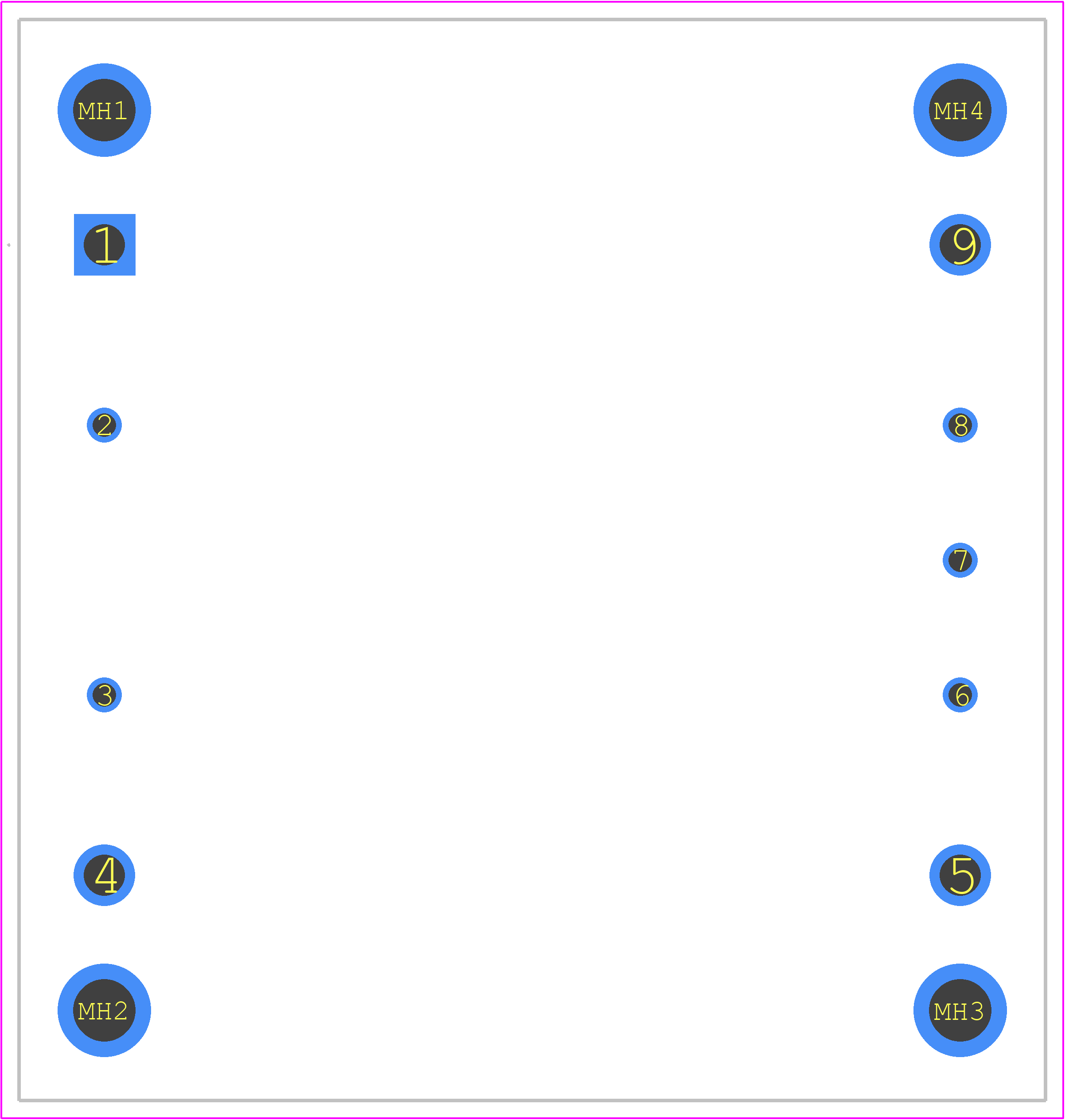

Use the download button to access the REC300H-2412SW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REC30,
or try a keyword search, such as Power Supply Modules
