REC30E-2412SZ footprint, schematic symbol and 3D model by RECOM Power

Symbol

click to zoom

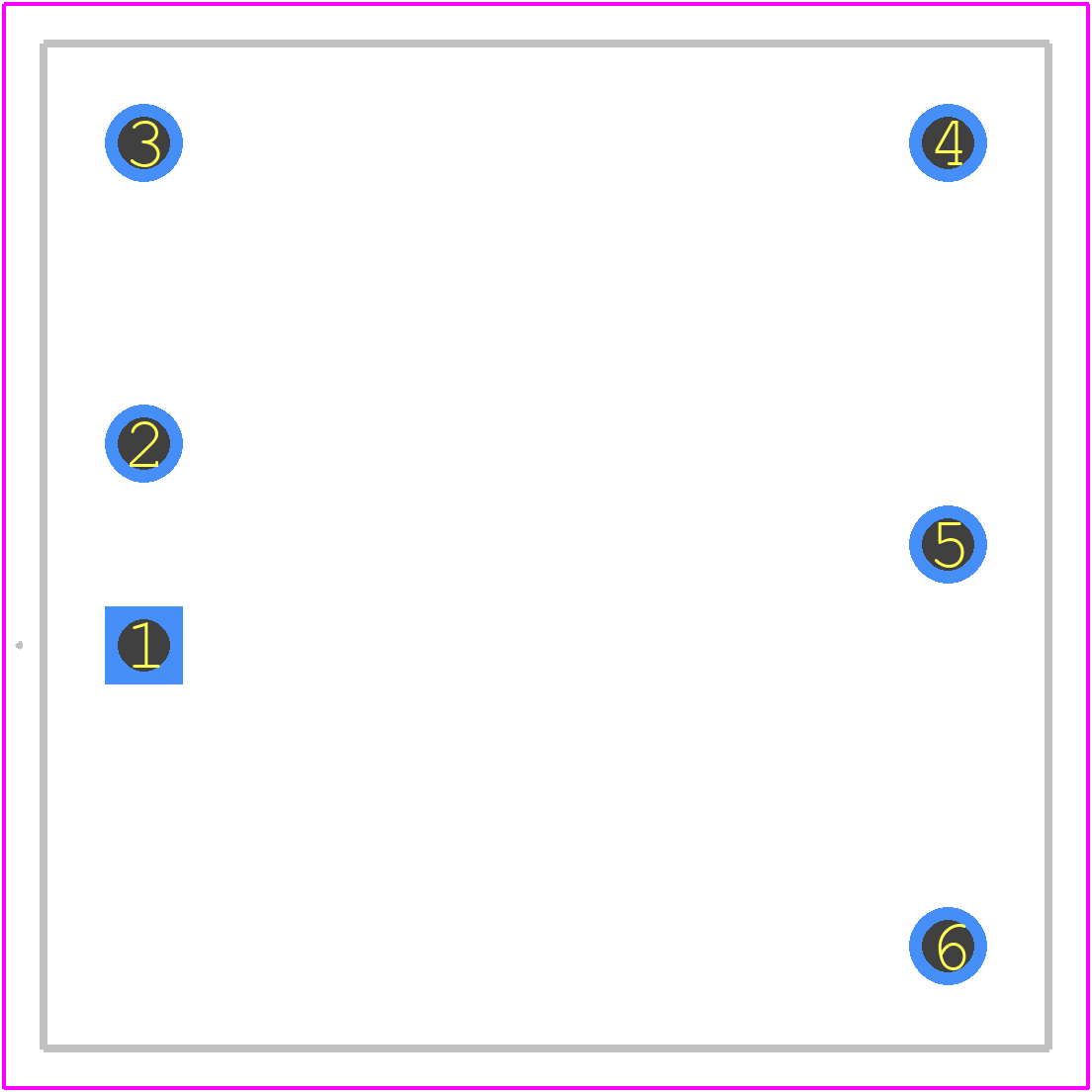

PCB Footprints

REC30E-2412SZ - RECOM Power PCB footprint - Other - Other - REC30E-243.3SZ-1

click to zoom

3D Models

REC30E-2412SZ - RECOM Power - 3D model - Other - REC30E-243.3SZ-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for REC30E-2412SZ
Part Number REC30E-2412SZ
Manufacturer RECOM Power
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - REC30E-243.3SZ-1
Released Date Dec 21, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

REC30E-2412SZ Details

Manufacturer Part Number:
REC30E-2412SZ
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DMA, MODULE,6LEAD,.8
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CB, EN, IEC
Efficiency (Main Output):
90%
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-MDMA-P6
Length:
25.4 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2.5 A
Output Voltage-Max:
13.2 V
Output Voltage-Min:
10.8 V
Output Voltage-Nom:
12 V
Package Body Material:
METAL
Package Code:
DMA
Package Equivalence Code:
MODULE,6LEAD,.8
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER LOAD, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.0265125 Vrms
Screening Level:
EN/IEC 62368-1
Seated Height-Max:
10.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
25.4 mm

REC30E-2412SZ Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The REC30E-2412SZ is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure your application meets the required safety certifications by following the guidelines and recommendations provided by RECOM Power Inc and the relevant safety standards.
RECOM Power Inc recommends using input and output filters with a common-mode choke, X-capacitors, and Y-capacitors to minimize EMI and ensure compliance with EMC standards such as EN55022 and CISPR22.
Use an oscilloscope to monitor the input and output voltages, currents, and switching waveforms. Check for proper input voltage, output voltage, and current ratings. Verify the PCB layout and thermal management are correct. Consult the datasheet and application notes for troubleshooting guidelines.
The REC30E-2412SZ has a typical lifespan of 10-15 years, depending on the operating conditions and environment. RECOM Power Inc provides a 3-year warranty and ensures high reliability through rigorous testing and quality control.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

REC30E-2412SZ Overview

Use the download button to access the REC30E-2412SZ schematic symbol, PCB footprint, and 3D model.
