REC3A-2405SW/H2 - RECOM Power

Description: Recom REC3A 3W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 5V dc

Download REC3A-2405SW/H2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

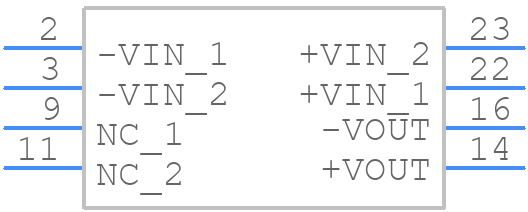

REC3A-2405SW/H2 - RECOM Power - PCB symbol
click to zoom
PCB Footprints

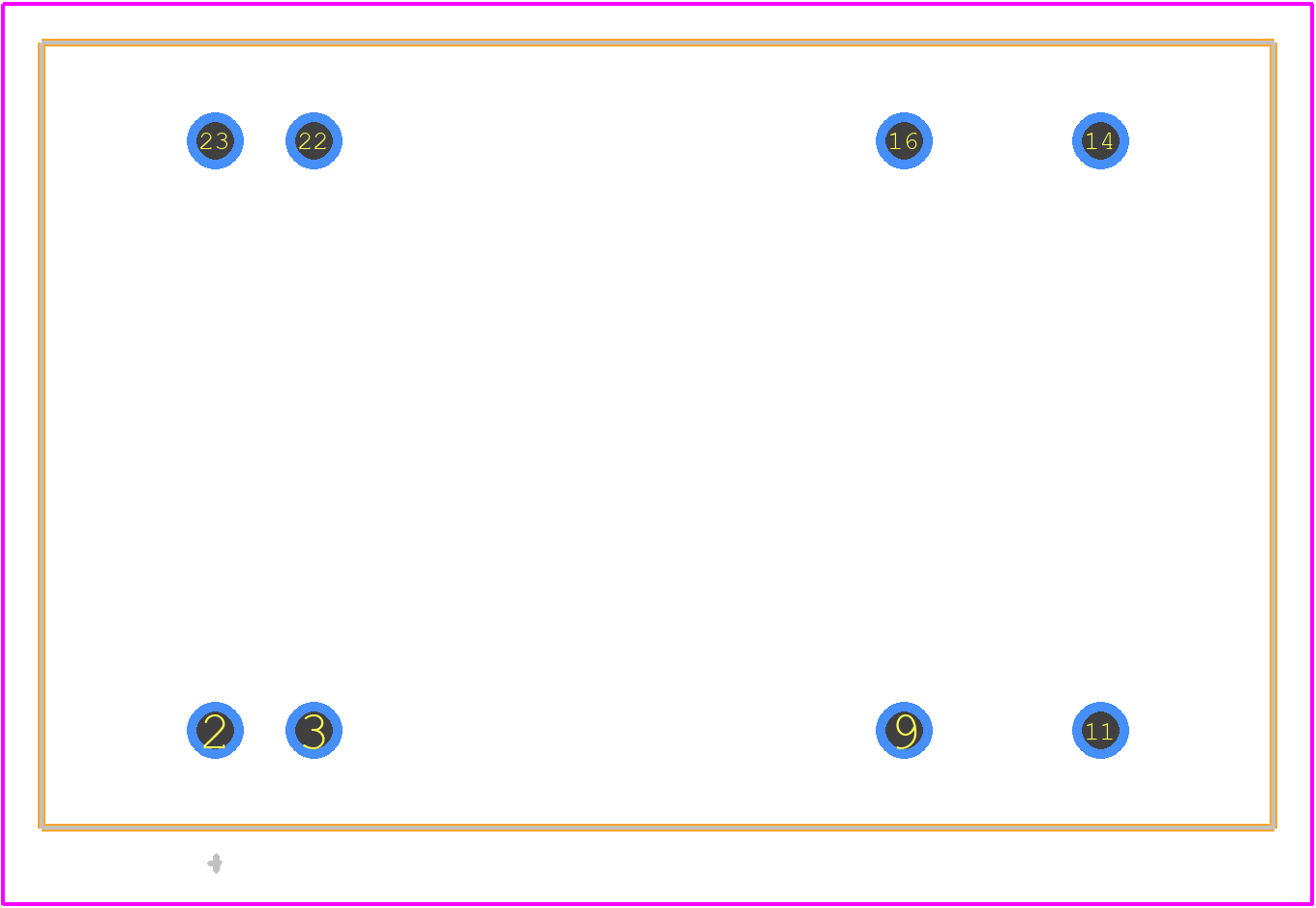

REC3A-2405SW/H2 - RECOM Power PCB footprint - Other - Other - REC3A-2405SW/H2-2
click to zoom
3D Models
REC3A-2405SW/H2 - RECOM Power - 3D model - Other - REC3A-2405SW/H2-2
click to zoom

REC3A-2405SW/H2 Details

  • Manufacturer Part Number:

    REC3A-2405SW/H2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-06-13

  • Manufacturer:

    RECOM Power GmbH

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

REC3A-2405SW/H2 Frequently Asked Questions (FAQs)

  • The maximum ambient temperature for the REC3A-2405SW/H2 is 80°C, with a derating of 2.5% per °C above 60°C.
  • Yes, the REC3A-2405SW/H2 is designed to withstand high vibrations and is suitable for use in industrial and transportation applications.
  • The recommended input capacitor value for the REC3A-2405SW/H2 is 10uF to 22uF, with a voltage rating of at least 50V.
  • No, the REC3A-2405SW/H2 is not designed to be paralleled for increased output current. Instead, consider using a higher-power converter from RECOM Power Inc.
  • The typical efficiency of the REC3A-2405SW/H2 is around 85% at full load, depending on the input voltage and output load.
