REC5A-2405SW/H2 - RECOM Power

Description: Recom Through Hole 5W Isolated DC-DC Converter, Vin 18 → 36 V dc, I/O isolation 2kV dc, Vout 5V dc

Download REC5A-2405SW/H2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

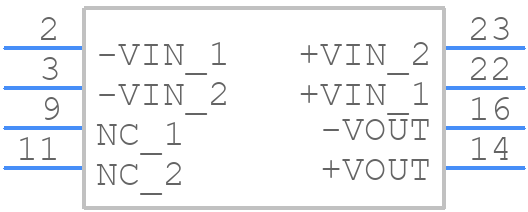

REC5A-2405SW/H2 - RECOM Power - PCB symbol
click to zoom
PCB Footprints

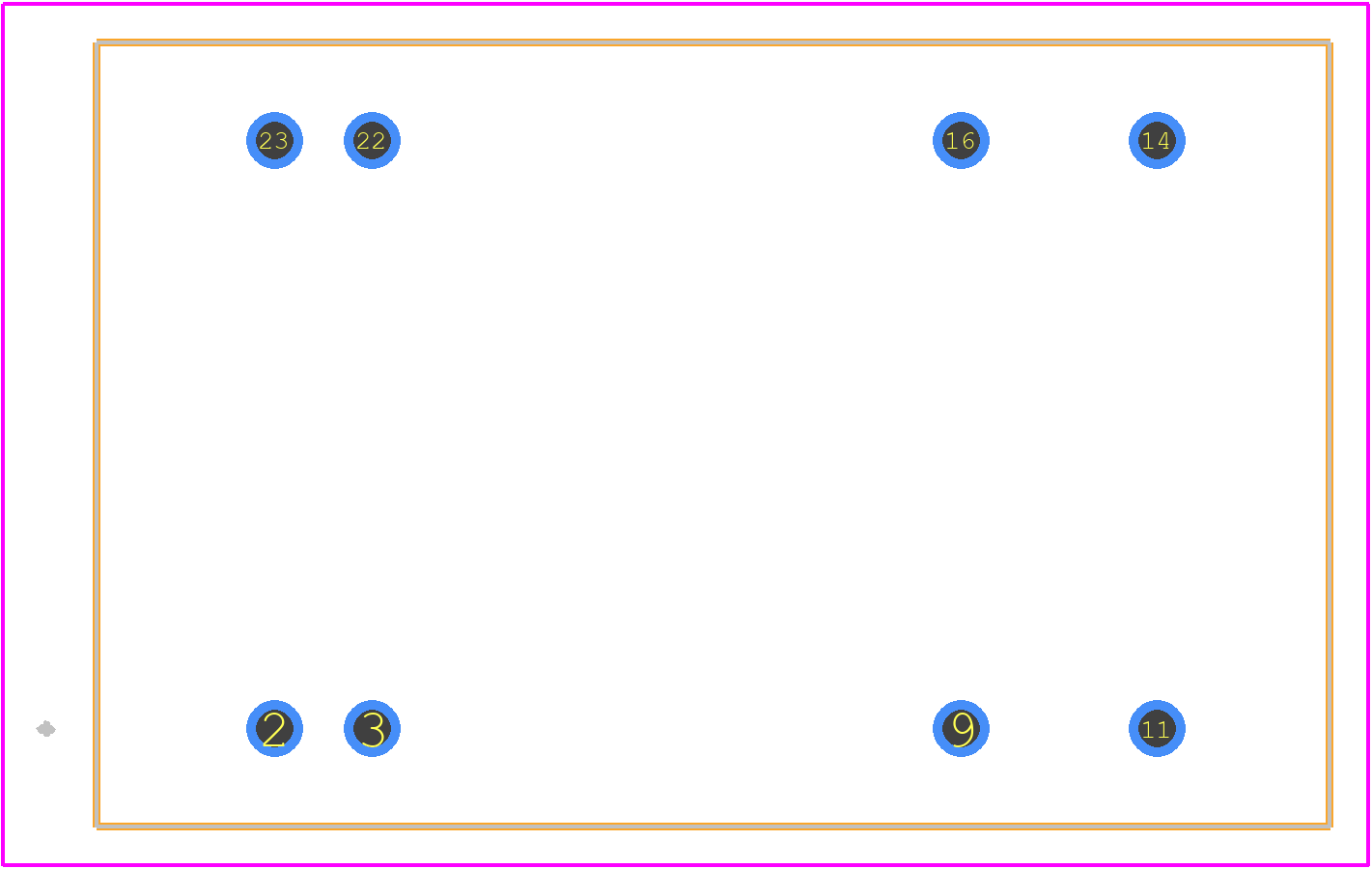

REC5A-2405SW/H2 - RECOM Power PCB footprint - Other - Other - REC5A_1
click to zoom
3D Models
REC5A-2405SW/H2 - RECOM Power - 3D model - Other - REC5A_1
click to zoom

REC5A-2405SW/H2 Details

  • Manufacturer Part Number:

    REC5A-2405SW/H2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-01-16

  • Manufacturer:

    RECOM Power GmbH

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

REC5A-2405SW/H2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the REC5A-2405SW/H2 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • Yes, the REC5A-2405SW/H2 is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity and moisture protection.
  • The recommended input capacitance for the REC5A-2405SW/H2 is 10uF to 22uF, with a voltage rating of at least 25V.
  • Yes, the REC5A-2405SW/H2 is designed to withstand vibrations up to 10G, but it's recommended to follow the manufacturer's guidelines for vibration and shock protection.
  • The maximum output current for the REC5A-2405SW/H2 is 1.5A, with a maximum power rating of 5W.
