REC6-2424SRW/R10/C footprint, schematic symbol and 3D model by RECOM Power

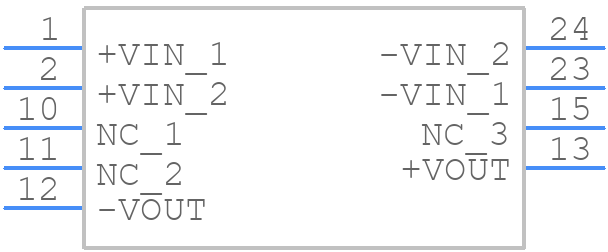

Symbol

click to zoom

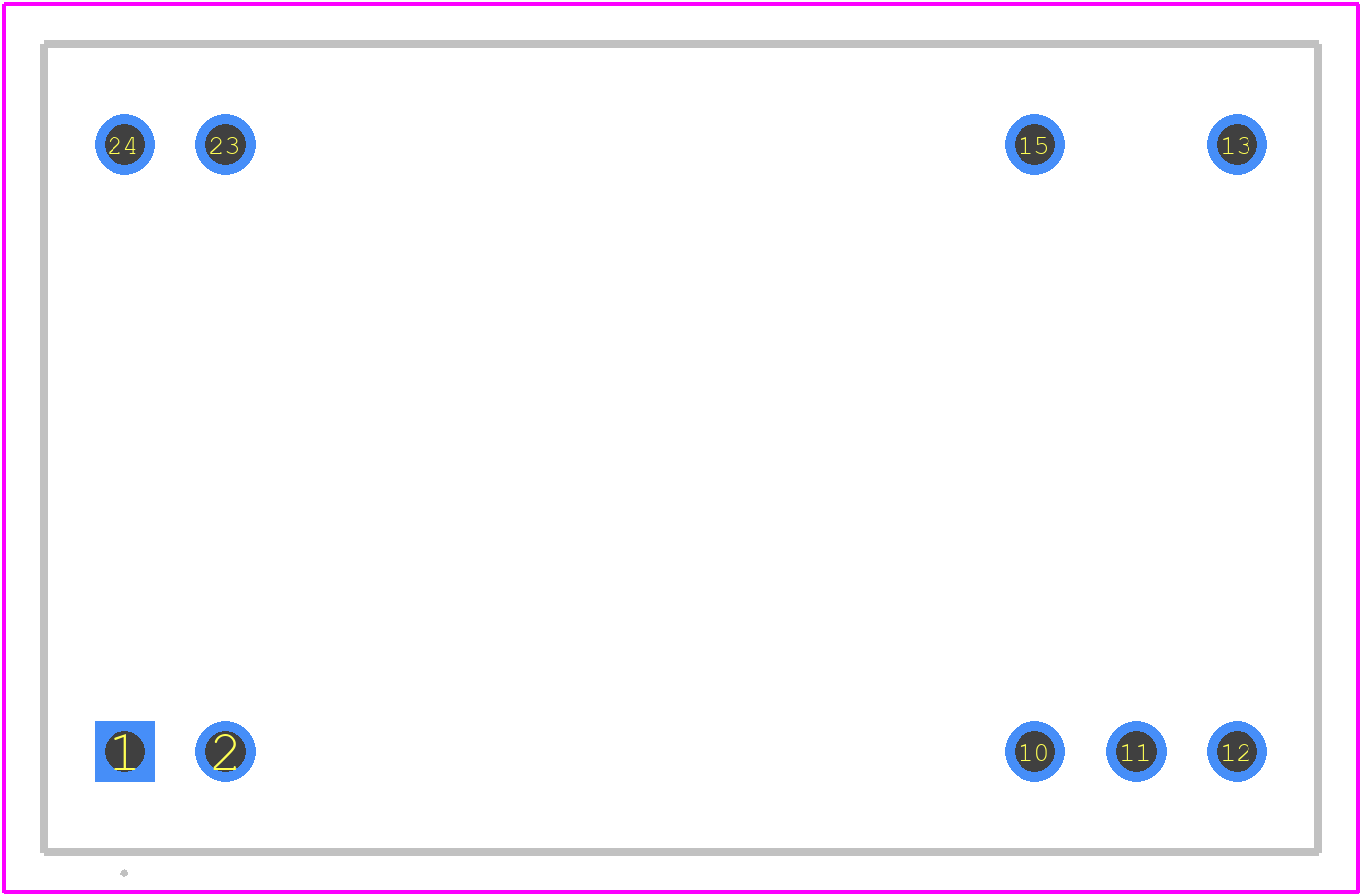

PCB Footprints

REC6-2424SRW/R10/C - RECOM Power PCB footprint - Other - Other - REC6-2424SRW/R10/C

click to zoom

3D Models

REC6-2424SRW/R10/C - RECOM Power - 3D model - Other - REC6-2424SRW/R10/C

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for REC6-2424SRW/R10/C
Part Number REC6-2424SRW/R10/C
Manufacturer RECOM Power
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - REC6-2424SRW/R10/C
Released Date Mar 23, 2024
Last Modified Date Jun 25, 2024 8:06 AM UTC
Pinout / Pin List Click Here (Member Only)

REC6-2424SRW/R10/C Details

Manufacturer Part Number:
REC6-2424SRW/R10/C
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP, DIP9/24,.6
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
6
Additional Feature:
SEATED HGT CALCULATED
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PDMA-T9
Length:
32 mm
Load Regulation-Max:
0.6%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.25 A
Output Voltage-Max:
24.48 V
Output Voltage-Min:
23.52 V
Output Voltage-Nom:
24 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP9/24,.6
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Qualification Status:
Not Qualified
Seated Height-Max:
10.45 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
6 W
Trim/Adjustable Output:
NO
Width:
20.3 mm

REC6-2424SRW/R10/C Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the REC6-2424SRW/R10/C is designed to withstand high vibrations. It is compliant with IEC 60068-2-6, which specifies the vibration test requirements for electrical equipment. However, it's recommended to consult with RECOM Power Inc for specific vibration requirements and to ensure the module is properly mounted and secured.
The maximum capacitance load that can be connected to the output of the REC6-2424SRW/R10/C is 10uF. Exceeding this value may cause instability or oscillation in the output voltage. It's recommended to consult with RECOM Power Inc for specific capacitance load requirements.
The REC6-2424SRW/R10/C is designed to operate up to 5000 meters above sea level. However, it's recommended to consult with RECOM Power Inc for specific high-altitude requirements and to ensure the module is properly derated for the specific environment.
Yes, the REC6-2424SRW/R10/C can be used in a redundant configuration. However, it's recommended to consult with RECOM Power Inc for specific redundant configuration requirements and to ensure the modules are properly connected and configured.

Trust Checks

Expert Contribution

System Verified

Community Approved

REC6-2424SRW/R10/C Overview

Use the download button to access the REC6-2424SRW/R10/C schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like REC6-, or try a keyword search, such as Power Supply Modules
