REC8-053.3SRW/H2/A/M/SMD-R - RECOM Power

Description: Isolated Module DC DC Converter 1 Output 3.3V 1.6A 4.5V - 9V Input

Download REC8-053.3SRW/H2/A/M/SMD-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

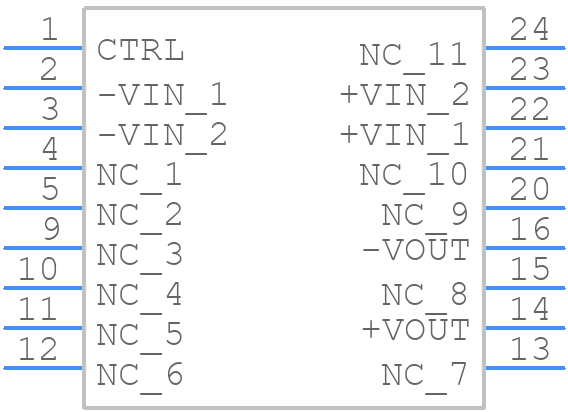

REC8-053.3SRW/H2/A/M/SMD-R - RECOM Power - PCB symbol
click to zoom
PCB Footprints

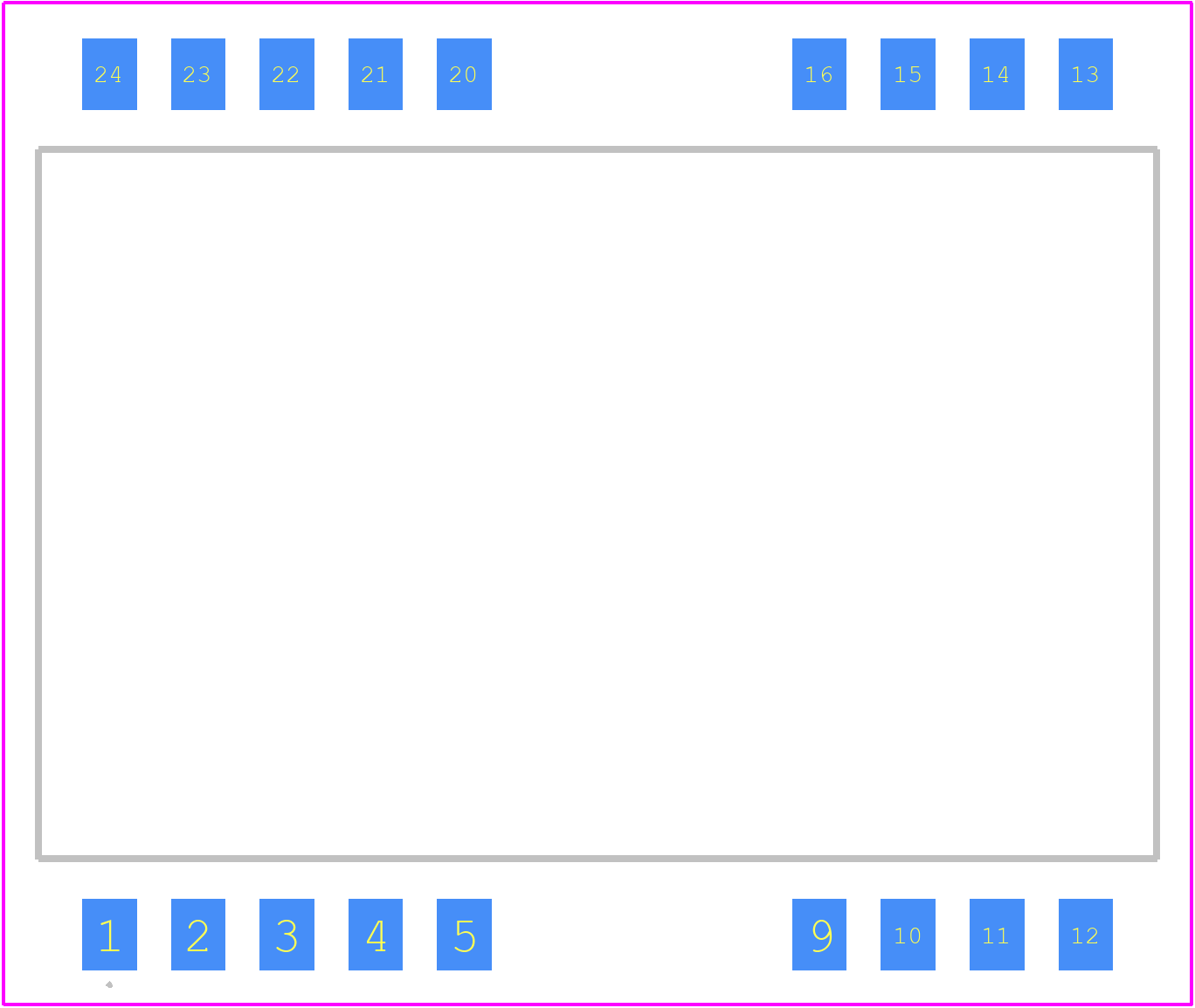

REC8-053.3SRW/H2/A/M/SMD-R - RECOM Power PCB footprint - Other - Other - 24-SMD Module, 18 Leads_2024
click to zoom
3D Models
REC8-053.3SRW/H2/A/M/SMD-R - RECOM Power - 3D model - Other - 24-SMD Module, 18 Leads_2024
click to zoom

REC8-053.3SRW/H2/A/M/SMD-R Details

  • Manufacturer Part Number:

    REC8-053.3SRW/H2/A/M/SMD-R

  • Part Life Cycle Code:

    Active

  • Package Description:

    DMA,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    5

  • Additional Feature:

    SEATED HGT CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, EN

  • Efficiency (Main Output):

    85%

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-MDMA-G18

  • JESD-609 Code:

    e1

  • Length:

    32 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.6 A

  • Output Voltage-Max:

    3.3495 V

  • Output Voltage-Min:

    3.2505 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT, OVER LOAD

  • Ripple Voltage (Main Out):

    0.017675 Vrms

  • Screening Level:

    IEC 60601-1

  • Seated Height-Max:

    11.45 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    5.28 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.3 s

  • Width:

    20.3 mm

REC8-053.3SRW/H2/A/M/SMD-R Frequently Asked Questions (FAQs)

  • RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal via connection to the heat sink. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of 1W/mK or higher is suggested.
  • The REC8-053.3SRW/H2/A/M/SMD-R is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. However, the final product must also meet the relevant safety certifications. Ensure that your system design meets the necessary safety requirements, and consult with RECOM Power Inc or a certified test house for guidance.
  • The maximum allowable capacitance on the output of the REC8-053.3SRW/H2/A/M/SMD-R is 220uF. Exceeding this value may affect the stability of the converter. It is recommended to consult with RECOM Power Inc or a qualified engineer for specific capacitance requirements.
  • The REC8-053.3SRW/H2/A/M/SMD-R is designed to meet the requirements of IEC 60068-2-6 for vibration. However, it is recommended to consult with RECOM Power Inc or a qualified engineer to ensure the converter meets the specific vibration requirements of your application.
  • The recommended input fuse rating for the REC8-053.3SRW/H2/A/M/SMD-R is 2A slow-blow or 1A fast-acting. However, the actual fuse rating may vary depending on the specific application and input voltage. Consult with RECOM Power Inc or a qualified engineer for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

REC8-053.3SRW/H2/A/M/SMD-R Overview

Use the download button to access the REC8-053.3SRW/H2/A/M/SMD-R schematic symbol, PCB footprint, and 3D model.
