RECE.20449.001E.01 - Taoglas

Description: RF Connectors / Coaxial Connectors RECE.20449.001E.01 Receptacle IPEX MHF4 (HSC Compatible)

Download RECE.20449.001E.01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

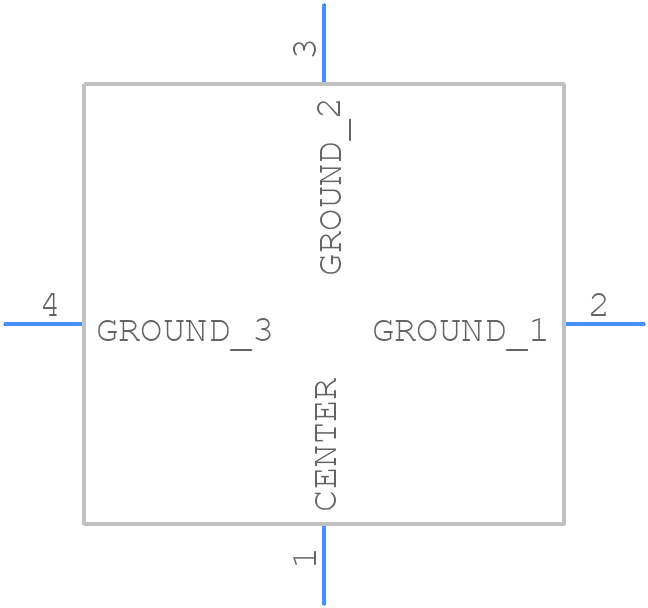

Symbol
RECE.20449.001E.01 - Taoglas - PCB symbol
click to zoom
PCB Footprints
RECE.20449.001E.01 - Taoglas PCB footprint - Other - Other - RECE.20449.001E.01-4
click to zoom
3D Models
RECE.20449.001E.01 - Taoglas - 3D model - Other - RECE.20449.001E.01-4
click to zoom

RECE.20449.001E.01 Details

  • Manufacturer Part Number:

    RECE.20449.001E.01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Taoglas Antenna Solutions

  • Body Breadth:

    0.66 inch

  • Body Depth:

    0.024 inch

  • Body Length:

    0.079 inch

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Coupling Type:

    SNAP

  • JESD-609 Code:

    e4

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    6 GHz

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    1

  • VSWR:

    1.45

RECE.20449.001E.01 Frequently Asked Questions (FAQs)

  • The recommended installation orientation is vertical polarization, with the antenna mounted perpendicular to the ground or mounting surface.
  • The antenna is designed to operate in temperatures ranging from -40°C to +85°C, but performance may vary. Consult with Taoglas for specific temperature-related performance data.
  • The maximum power rating for this antenna is 20W, but it's recommended to consult with Taoglas for specific power handling capabilities and derating factors.
  • Yes, the antenna is designed for outdoor use and is IP67 rated, making it suitable for harsh environmental conditions.
  • The typical lead time for delivery varies depending on the quantity and availability. Consult with Taoglas or an authorized distributor for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RECE.20449.001E.01 Overview

Use the download button to access the RECE.20449.001E.01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RECE., or try a keyword search, such as Other RF Connectors
