REM10-1205S/A footprint, schematic symbol and 3D model by RECOM Power

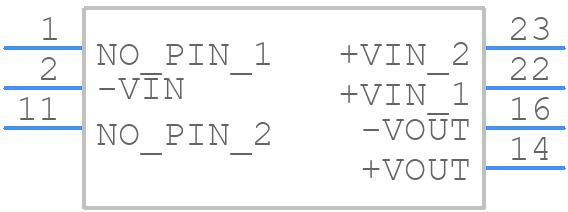

Symbol

click to zoom

PCB Footprints

REM10-1205S/A - RECOM Power PCB footprint - Other - Other - REM10-1205S/A

click to zoom

3D Models

REM10-1205S/A - RECOM Power - 3D model - Other - REM10-1205S/A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for REM10-1205S/A
Part Number REM10-1205S/A
Manufacturer RECOM Power
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - REM10-1205S/A
Released Date Sep 12, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

REM10-1205S/A Details

Manufacturer Part Number:
REM10-1205S/A
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP,
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
5
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
ANSI, CSA, EAC, EN, IEC
Efficiency (Main Output):
85.5%
Input Voltage-Max:
18 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDIP-P6
JESD-609 Code:
e3
Length:
31.8 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
5.05 V
Output Voltage-Min:
4.95 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
260
Protections:
SHORT CIRCUIT; OVER VOLTAGE; OVERLOAD
Ripple Voltage (Main Out):
0.010605 Vrms
Screening Level:
IEC/EN 60601-1, TWO MOPP
Seated Height-Max:
10.9 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.03 s
Width:
20.3 mm

REM10-1205S/A Frequently Asked Questions (FAQs)

RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the REM10-1205S/A is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screw torque procedures to ensure the module remains securely attached to the PCB.
RECOM recommends using a voltage regulator or a DC-DC converter with a tight output voltage tolerance to ensure the input voltage to the REM10-1205S/A stays within the recommended range of 10.2V to 13.2V. Additionally, consider adding input voltage monitoring and protection circuits to prevent damage from voltage excursions.
The REM10-1205S/A is rated for operation up to 80°C ambient temperature, with a derating of 2.5% per degree above 60°C. It's essential to ensure good airflow and heat dissipation to maintain the module's reliability and performance.
Yes, the REM10-1205S/A can be used in redundant or parallel configurations to achieve higher power output or improved reliability. However, it's crucial to follow RECOM's guidelines for parallel operation and to ensure proper synchronization and current sharing between modules.

Trust Checks

Expert Contribution

System Verified

Community Approved

REM10-1205S/A Overview

Use the download button to access the REM10-1205S/A schematic symbol, PCB footprint, and 3D model.
