OVER VOLTAGE, OVER CURRENT, SHORT CIRCUIT, OVER TEMPERATURE
Ripple Voltage (Main Out):
0.017675 Vrms
Seated Height-Max:
10.45 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
15 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.06 s
Width:
25.4 mm
REM15-2405SW Frequently Asked Questions (FAQs)
RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the REM15-2405SW is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screwing procedures to ensure the module is securely fastened to the PCB or chassis.
To ensure reliability in high-temperature environments, it's essential to follow the recommended derating curves for output power and ambient temperature. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce the thermal resistance between the module and the PCB or chassis.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22 μF, rated for the input voltage range, as close as possible to the module's input pins. This helps to filter out input noise and ensure stable operation.
Yes, the REM15-2405SW can be used in redundant or parallel configurations to achieve higher power output or redundancy. However, it's essential to follow RECOM's guidelines for parallel operation, including using identical modules, ensuring proper synchronization, and implementing adequate overcurrent protection.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REM15-2405SW Overview

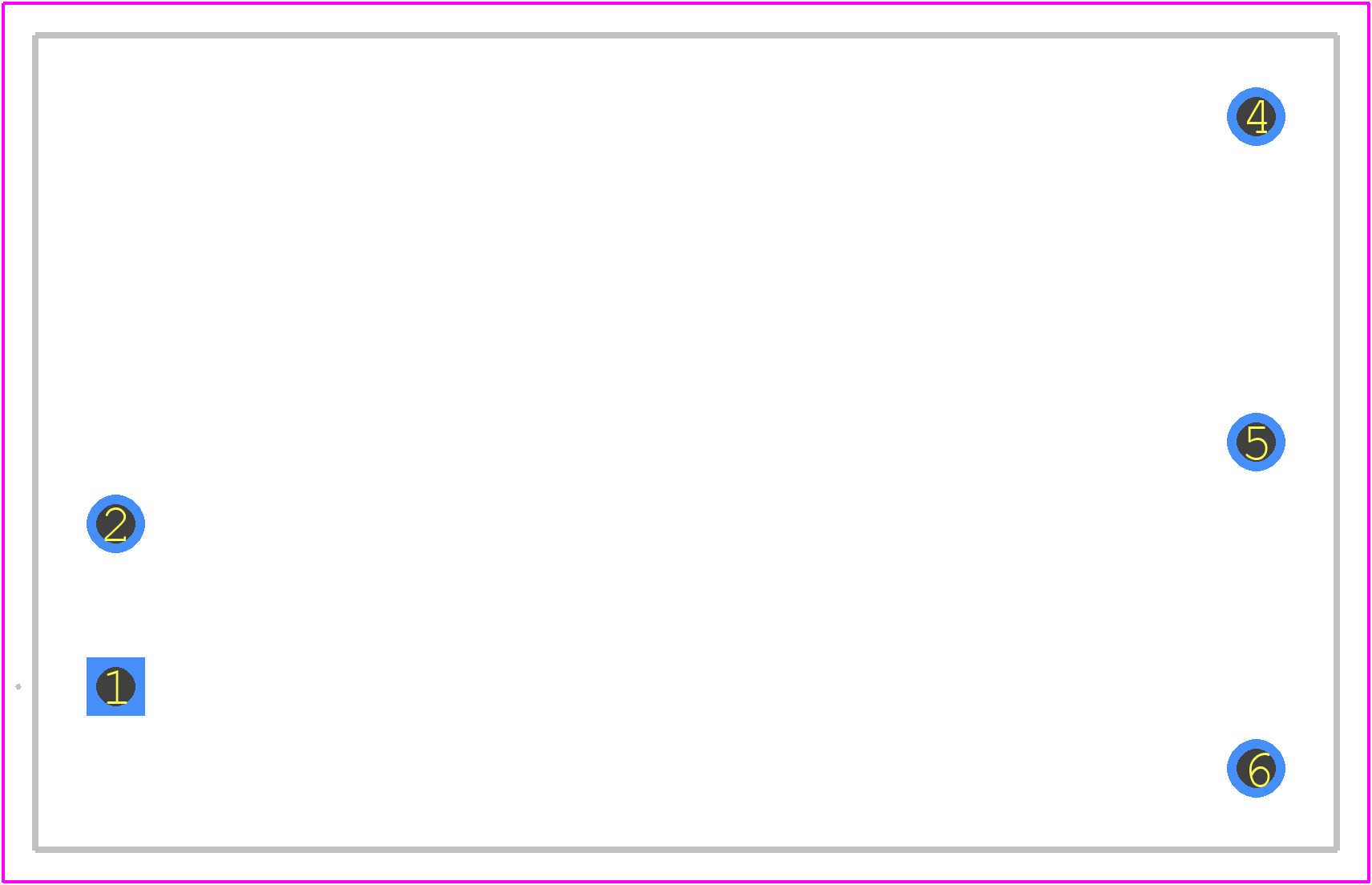

Use the download button to access the REM15-2405SW schematic symbol, PCB footprint, and 3D model.
