RECOM Power Inc recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the REM3-0505S/A/CTRL is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screwing of the module to the PCB to prevent damage.
The REM3-0505S/A/CTRL has built-in OVP, which will shut down the module if the input voltage exceeds 6.5V. However, if you need to implement additional OVP, you can use an external voltage monitoring IC, such as the TLV7031, to detect overvoltage conditions and shut down the module using the enable pin.
RECOM Power Inc recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, rated for at least 10V, as close as possible to the module's input pins. This helps to filter out input noise and ensure stable operation.
Yes, the REM3-0505S/A/CTRL can be used in a redundant power supply configuration. However, you'll need to ensure that the modules are properly synchronized and that the output voltages are matched to prevent damage or instability. Consult RECOM Power Inc's application notes for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REM3-0505S/A/CTRL Overview

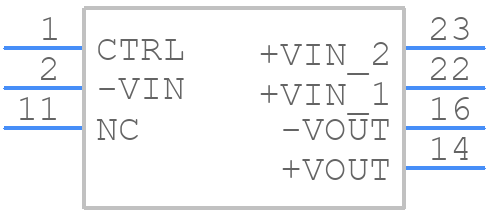

Use the download button to access the REM3-0505S/A/CTRL schematic symbol, PCB footprint, and 3D model.
