OUTPUT OVER VOLTAGE; OVER CURRENT; OVER TEMPERATURE; OVER LOAD
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.06 s
Width:
25.4 mm
REM30-2424SW Frequently Asked Questions (FAQs)
RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad, and a minimum of 2oz copper thickness to ensure good heat dissipation. A thermal via array under the module can also improve thermal performance.
Yes, the REM30-2424SW is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screw torque guidelines to ensure reliable operation.
To ensure EMC, RECOM recommends using a metal enclosure, keeping the module at least 10mm away from other components, and using a common-mode choke or filter on the input lines. Additionally, follow proper PCB layout and grounding practices to minimize electromagnetic interference.
The maximum allowable capacitance on the output of the REM30-2424SW is 220uF. Exceeding this value may cause instability or oscillation in the output voltage. It's recommended to use a capacitor with a low equivalent series resistance (ESR) to minimize output voltage ripple.
Yes, the REM30-2424SW can be used in a redundant or parallel configuration to achieve higher power or redundancy. However, it's essential to follow RECOM's guidelines for parallel operation, including using identical modules, and ensuring proper synchronization and current sharing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REM30-2424SW Overview

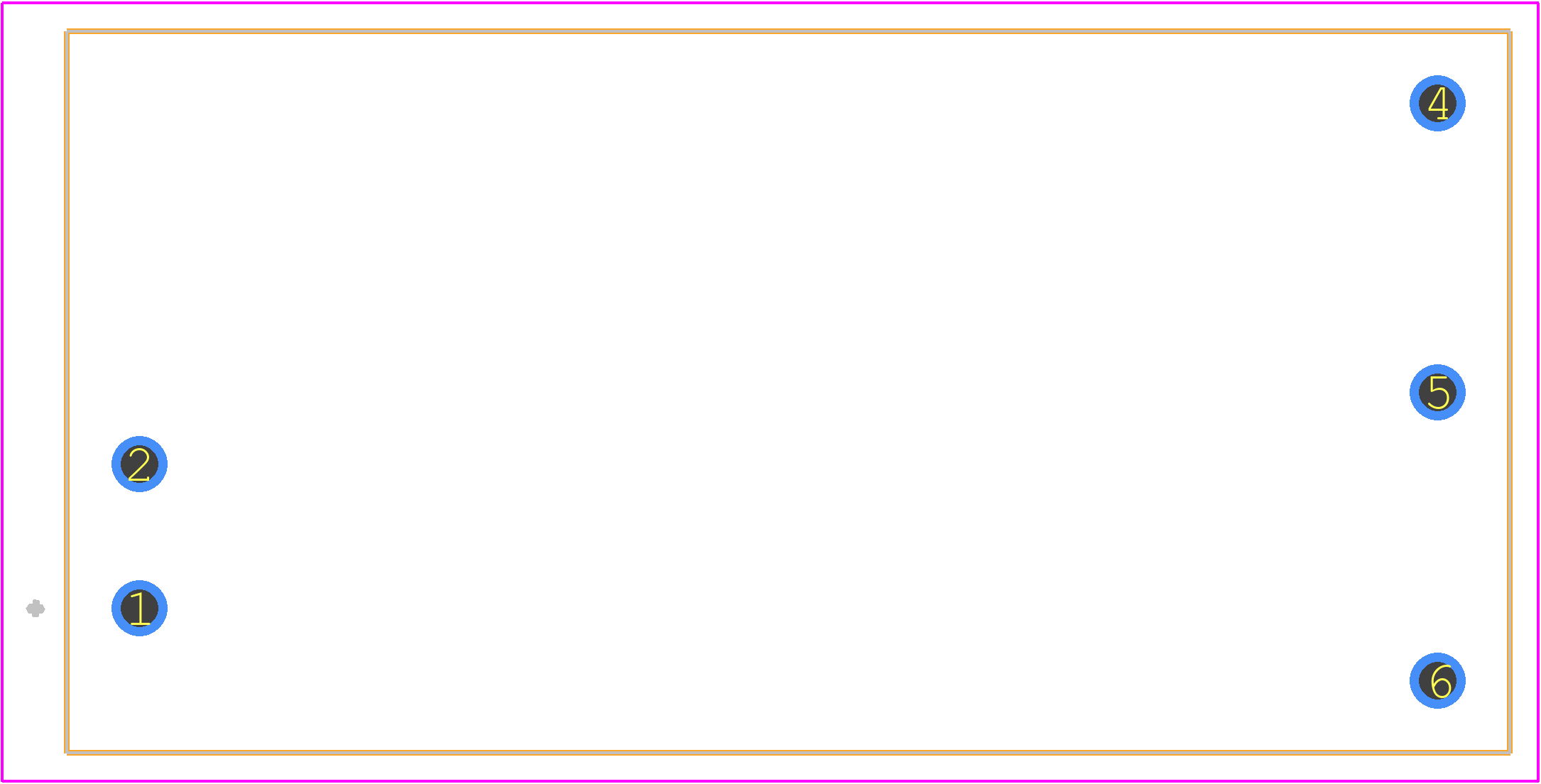

Use the download button to access the REM30-2424SW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REM30,
or try a keyword search, such as Power Supply Modules
