The maximum switching frequency of the RF1V-2A2BL-D24 relay is 20 Hz. Exceeding this frequency may reduce the relay's lifespan.
The operating temperature range of the RF1V-2A2BL-D24 relay is -20°C to 65°C. While it can tolerate high temperatures, it's not recommended to use it in extreme temperature environments without proper cooling or heat dissipation measures.
To ensure proper isolation, make sure to follow the recommended PCB layout and clearance guidelines provided in the datasheet. Additionally, use a suitable power supply with adequate isolation and follow proper wiring and grounding practices.
The recommended wire gauge for connecting to the RF1V-2A2BL-D24 relay module is 24 AWG to 18 AWG. Using a wire gauge that is too small may lead to voltage drops and reduced relay performance.
While the RF1V-2A2BL-D24 relay module is designed to be reliable, it is not certified for use in safety-critical applications. If you need a relay for a safety-critical application, consider using a relay module that meets the relevant safety standards, such as IEC 61508 or UL 508.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RF1V-2A2BL-D24 Overview

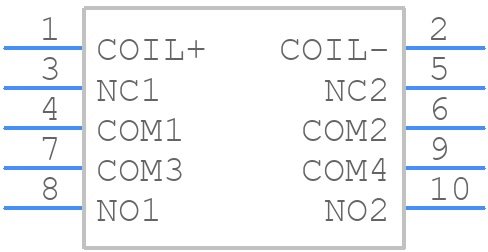

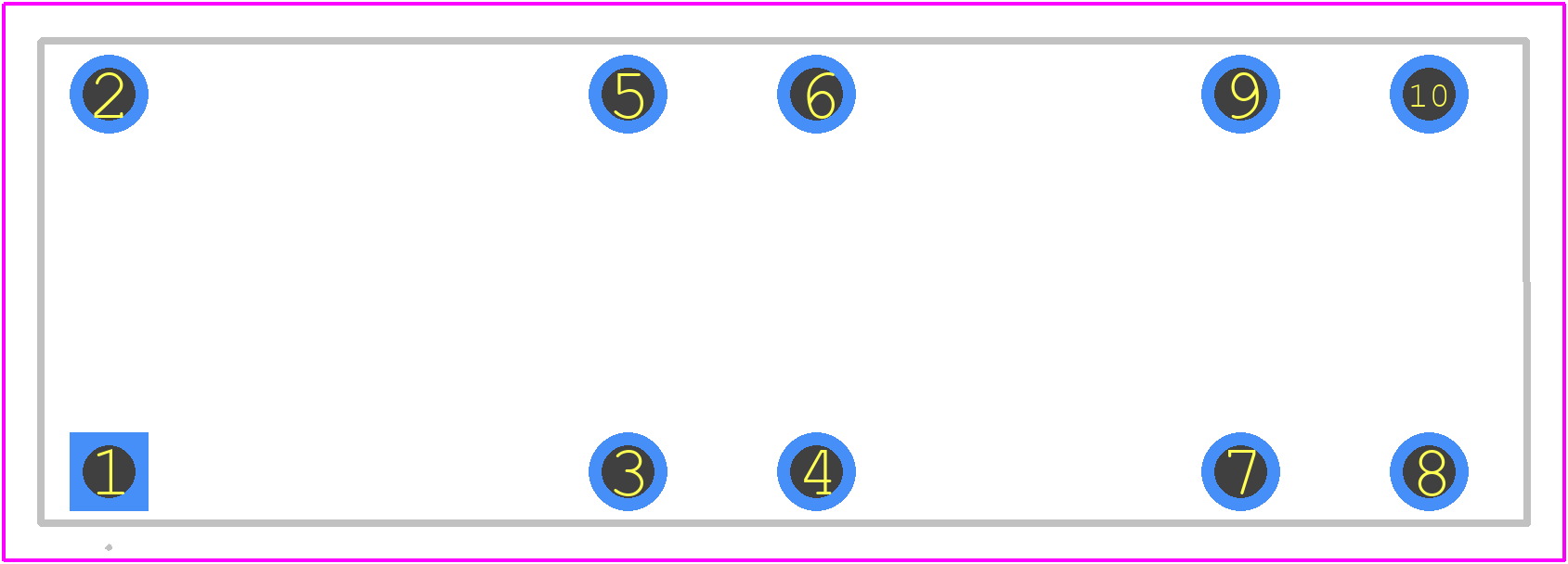

Use the download button to access the RF1V-2A2BL-D24 schematic symbol, PCB footprint, and 3D model.
