The maximum switching frequency of the RF1V-5A1BL-D24 relay is 20 operations per minute.
Yes, the RF1V-5A1BL-D24 relay is designed to withstand vibrations up to 10-55 Hz, 1.5 mm amplitude.
No, the RF1V-5A1BL-D24 relay is not certified for use in hazardous locations. It is intended for general-purpose applications only.
The recommended wire size for the RF1V-5A1BL-D24 relay's terminals is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
Yes, the RF1V-5A1BL-D24 relay is designed to be compatible with PLCs and other automation systems, and can be controlled using standard digital signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RF1V-5A1BL-D24 Overview

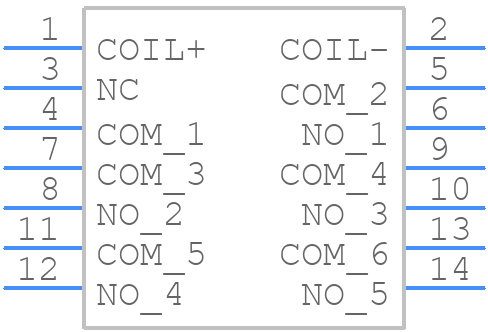

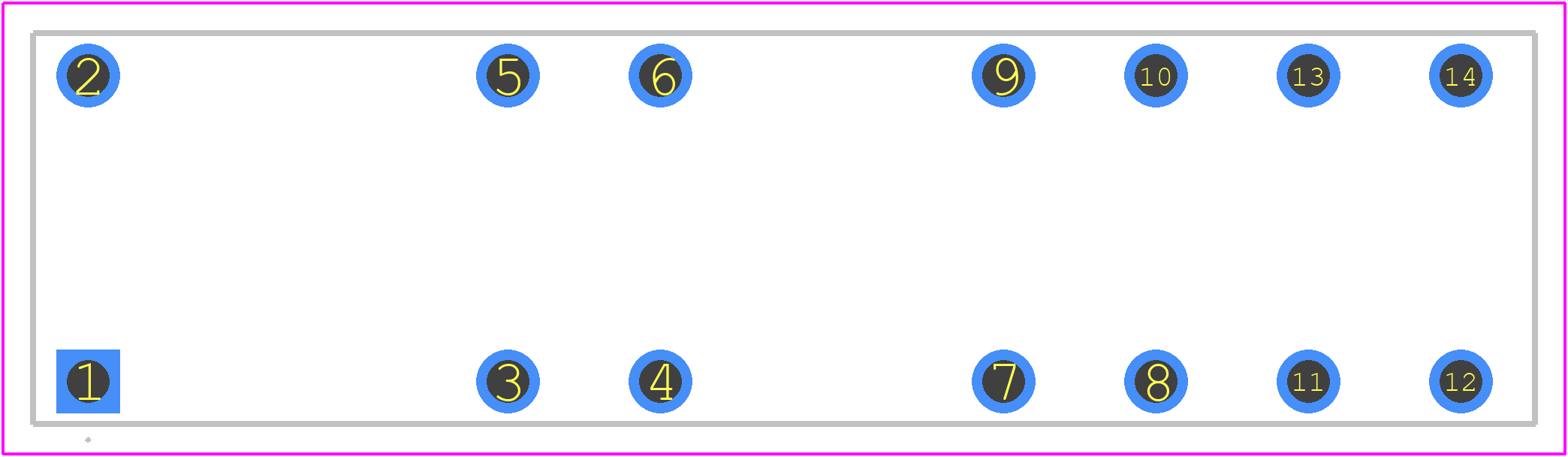

Use the download button to access the RF1V-5A1BL-D24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RF1V-,
or try a keyword search, such as Power/Signal Relays
