- Part Number RF2173TR13
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - RF2173TR13-7
- Released Date Jan 16, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RF2173TR13 Details
-
Manufacturer Part Number:
RF2173TR13
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Mounting Feature:
SURFACE MOUNT
-
Number of Functions:
1
-
Number of Terminals:
16
-
Operating Temperature-Max:
85 °C
-
Operating Temperature-Min:
-40 °C
-
Package Body Material:
PLASTIC/EPOXY
RF2173TR13 Frequently Asked Questions (FAQs)
-
A multi-layer PCB with a solid ground plane and a separate RF ground plane is recommended. Use a via-stitching technique to connect the two planes. Ensure a low-impedance path to ground for the RF ground pin.
-
Use a network analyzer to measure the device's input and output impedance. Then, use a Smith chart to design and optimize the matching networks for maximum power transfer and minimum loss.
-
The device can handle up to 2W of continuous wave (CW) power. However, the maximum power handling capability may vary depending on the operating frequency, duty cycle, and environmental conditions.
-
Monitor the device's junction temperature, voltage, and current to ensure they are within the recommended limits. Use thermal management techniques, such as heat sinks and thermal interfaces, to maintain a safe junction temperature.
-
Use a controlled atmosphere soldering process with a peak temperature of 260°C. Ensure the device is handled and stored in an electrostatic discharge (ESD) protective environment.
Trust Checks
Expert Contribution
System Verified
Community Approved
RF2173TR13 Overview

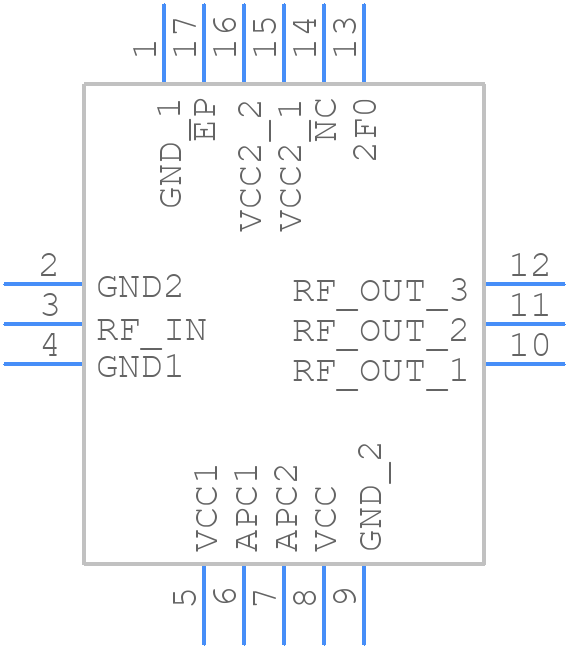

Use the download button to access the RF2173TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RF217,
or try a keyword search, such as RF/Microwave Amplifiers
