Teledyne recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line layout to minimize signal loss and radiation. A detailed application note is available upon request.
Teledyne recommends following the recommended mounting and screw torque specifications, and using a vibration-dampening material (e.g., silicone adhesive) between the device and the PCB. Additionally, ensure the PCB is properly secured to the chassis or enclosure.
While the datasheet specifies an operating temperature range of -40°C to +85°C, Teledyne recommends derating the device by 1°C per 1,000 feet above sea level to ensure reliable operation in high-altitude applications.
Yes, the RF303-12 is designed to be compact and can be used in space-constrained designs. However, ensure proper thermal management and clearance around the device to prevent overheating and signal degradation.
Teledyne recommends following a systematic troubleshooting approach, including checking the power supply, signal input, and PCB layout. Additionally, consult the device's errata sheet and application notes for specific guidance on troubleshooting common issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RF303-12 Overview

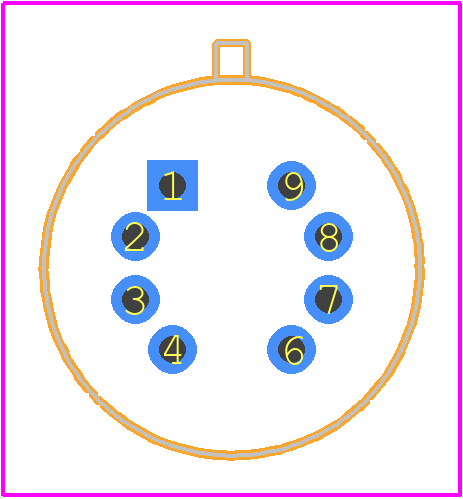

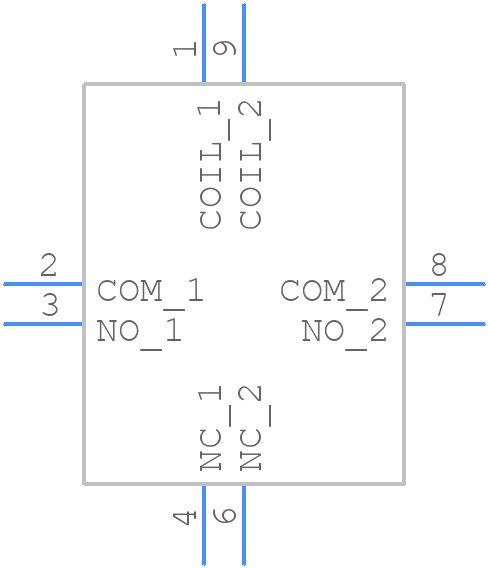

Use the download button to access the RF303-12 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RF303,
or try a keyword search, such as RF Relays
