RF303-5 - Teledyne Technologies

RF303-5 Details

• Manufacturer Part Number:

  RF303-5

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Teledyne Technologies Inc

• YTEOL:

  8

• Additional Feature:

  ELECTRICAL LIFE FOR LOW LEVEL RATINGS IS 10000000

• Body Height:

  9.78 mm

• Body Length or Diameter:

  9.4 mm

• Coil Current(DC)-Max:

  0.05 A

• Coil Operate Voltage(DC):

  3.6 V

• Coil Power:

  200 mW

• Coil Resistance:

  100 Ω

• Coil Voltage(DC)-Max:

  5 V

• Coil Voltage-Nom:

  5 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@28VDC

• Contact Resistance:

  150 mΩ

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  DC

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

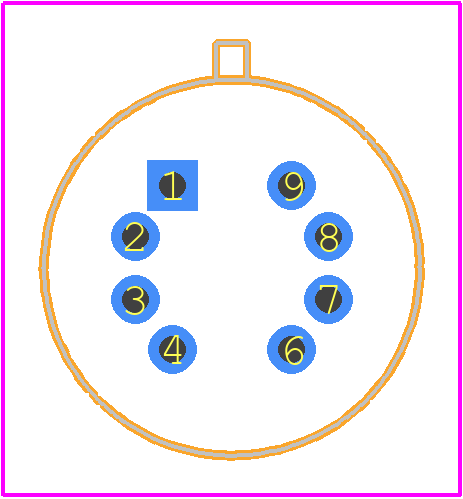

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  8

• Operate Time:

  6 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Physical Dimension:

  9.4mm x 9.78mm

• Relay Action:

  MOMENTARY

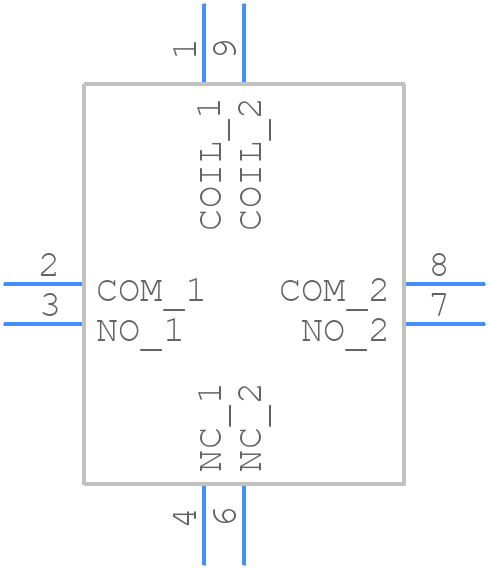

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  RF RELAY

• Release Time:

  3 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Switching Time:

  9 ms

• Terminal Length:

  0.018999237998476 inch

• Termination Type:

  SOLDER
