- Part Number RF5110G
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RF5110
- Released Date Sep 17, 2018
- Last Modified Date Feb 28, 2025 1:58 PM UTC
- Pinout / Pin List Click Here (Member Only)
RF5110G Details
-
Manufacturer Part Number:
RF5110G
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-16
-
ECCN Code:
5A991.G
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
31.5 dB
-
Input Power-Max (CW):
13 dBm
RF5110G Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and grounding scheme in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
Qorvo offers a variety of evaluation boards and design files that can be used as a starting point for custom designs. Additionally, Qorvo's application engineers can provide guidance on optimizing the RF5110G for specific frequency bands or applications.
-
The maximum power handling capability of the RF5110G is dependent on the specific application and operating conditions. Qorvo recommends consulting their application note AN-2171 for guidance on power handling and thermal management.
-
Qorvo provides guidance on meeting regulatory requirements for EMI and EMC in their application note AN-2171. Additionally, Qorvo's evaluation boards are designed to meet regulatory requirements, and can be used as a reference for custom designs.
-
The recommended operating temperature range for the RF5110G is -40°C to +85°C. However, Qorvo recommends consulting the datasheet and application notes for specific guidance on operating temperature range and thermal management.
Trust Checks
Community Provided
System Verified
Community Approved
RF5110G Overview

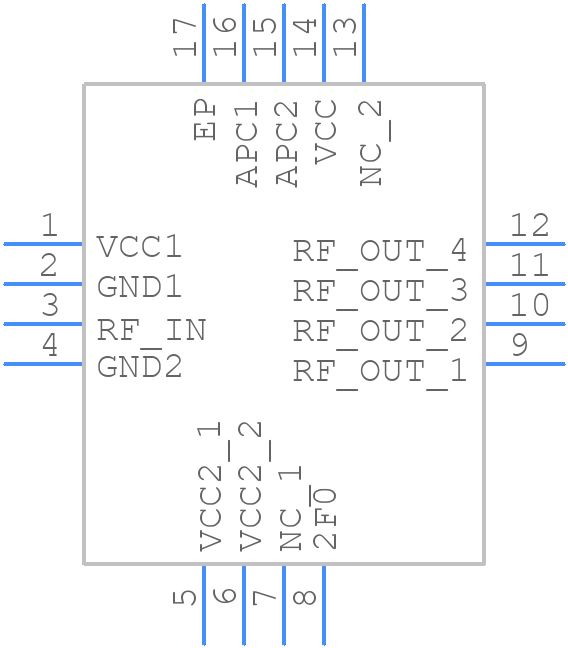

Use the download button to access the RF5110G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RF511,
or try a keyword search, such as RF/Microwave Amplifiers
