RF5110GSR - Qorvo

Description: RF Amplifier 150-960MHz Pout 32dBm PAE 53%

Download RF5110GSR Model
Schematic
symbols

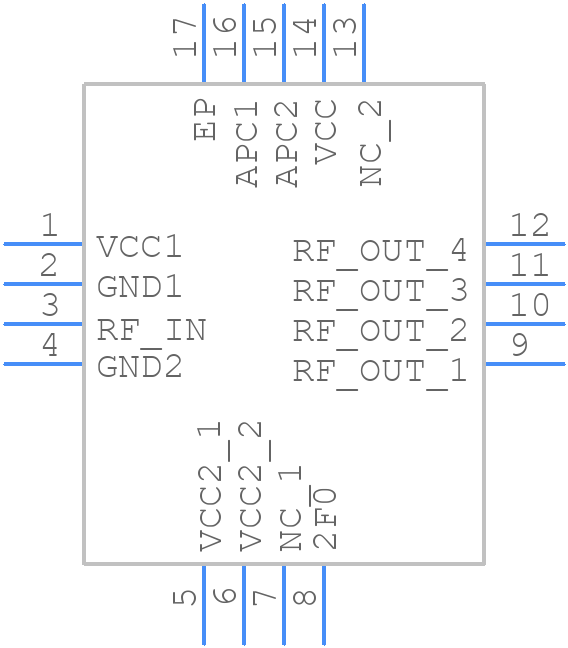

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RF5110GSR - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 pin qfn-
click to zoom
3D Models
RF5110GSR - Qorvo  - 3D model - Quad Flat No-Lead - 16 pin qfn-
click to zoom

RF5110GSR Details

  • Manufacturer Part Number:

    RF5110GSR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LCC16,.12SQ,20

  • Reach Compliance Code:

    compliant

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    33 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    960 MHz

  • Operating Frequency-Min:

    150 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    3.5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    2400 mA

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    10
