RF5110GTR7 - Qorvo

Description: RF Amplifier 150-960MHz Pout 32dBm PAE 53%

Download RF5110GTR7 Model

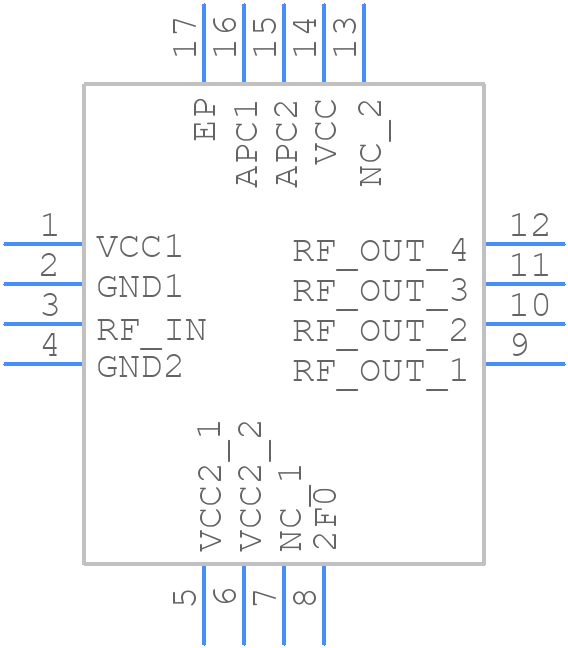

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RF5110GTR7 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RF5110-ren1
click to zoom
3D Models
RF5110GTR7 - Qorvo  - 3D model - Quad Flat No-Lead - RF5110-ren1
click to zoom

RF5110GTR7 Details

  • Manufacturer Part Number:

    RF5110GTR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    33 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    915 MHz

  • Operating Frequency-Min:

    880 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    2.7/4.8 V

  • RF/Microwave Device Type:

    POWER AMPLIFIER

  • Supply Current-Max:

    2000 mA

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    10

RF5110GTR7 Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane and a separate RF ground plane is recommended. Use a via-stitching technique to connect the RF ground plane to the main ground plane. Ensure a low-inductance path to ground for the RF pins.
  • Use a load-pull analysis or a network analyzer to determine the optimal impedance matching for the device. Consider using a pi-network or a T-network topology for the matching circuit.
  • The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and reliability.
  • Use a shielded enclosure, ensure proper grounding and bonding, and follow good PCB layout practices. Consider using a common-mode choke or a ferrite bead to reduce EMI emissions.
  • The maximum allowable input power is +20 dBm. Exceeding this limit may cause damage to the device or affect its performance.
