RF5570TR7 - Qorvo

Description: RF Switch ICs 2.4 to 2.5 GHz 0.6 dB IL, 25 dB

Download RF5570TR7 Model

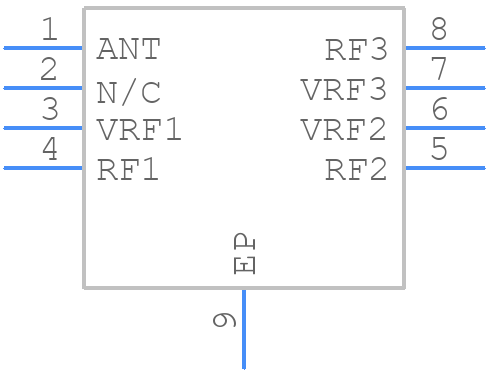

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RF5570TR7 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN, 8-Pin, 2mmx2mmx0.55mm
click to zoom
3D Models
RF5570TR7 - Qorvo  - 3D model - Small Outline No-lead - DFN, 8-Pin, 2mmx2mmx0.55mm
click to zoom

RF5570TR7 Details

  • Manufacturer Part Number:

    RF5570TR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • 1dB Compression Point:

    28 dBm

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    21 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    SP3T

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.43

RF5570TR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane on the bottom layer, and a separate ground plane for the RF section is recommended. Ensure proper decoupling and grounding of the device, and keep the RF traces as short as possible.
  • Use the device's built-in calibration features and adjust the external matching components (e.g., capacitors and inductors) to optimize the impedance matching for the desired frequency band.
  • The device can handle up to 33 dBm of input power, but it's recommended to operate within the specified 1 dB compression point (typically around 25 dBm) to ensure optimal performance and linearity.
  • Follow the recommended biasing and configuration guidelines in the datasheet, and ensure the device is properly powered and enabled. Use the device's built-in registers to configure the desired operating mode and settings.
  • The device has a maximum junction temperature of 150°C. Ensure proper heat sinking and thermal management by using a heat spreader, thermal vias, and a thermal interface material (TIM) to keep the junction temperature below the maximum rating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RF5570TR7 Overview

Use the download button to access the RF5570TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RF557, or try a keyword search, such as RF/Microwave Switches

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
