RF6886SR Details
-
Manufacturer Part Number:
RF6886SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
4 X 4 MM, HALOGEN FREE AND ROHS COMPLIANT, LEADLESS, QFN-24
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Additional Feature:
IT CAN ALSO OPERATE AT 100 TO 1000 MHZ
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
31 dB
-
Input Power-Max (CW):
12 dBm
RF6886SR Frequently Asked Questions (FAQs)
-
A multi-layer PCB with a solid ground plane and a separate RF ground plane is recommended. Use a star-grounding scheme to minimize noise and ensure that the RF ground is connected to the chassis ground at a single point.
-
Use a Smith chart to design the matching network. Start with a simple L-match or π-match topology and optimize the component values using simulation software or empirical methods. Ensure that the matching network is optimized for the specific frequency band and impedance of the antenna.
-
The recommended operating temperature range for the RF6886SR is -40°C to +85°C. However, the device can operate up to +105°C with reduced performance and reliability.
-
Use a metal shielded enclosure, ensure proper grounding and bonding, and use EMI filters or absorbers as needed. Follow good PCB design practices, such as separating analog and digital circuits, and using decoupling capacitors to reduce noise.
-
The RF6886SR can handle up to 2W of continuous wave (CW) power. However, the maximum power handling capability may be limited by the specific application, PCB design, and thermal management.
Trust Checks
Community Provided
System Verified
Community Approved
RF6886SR Overview

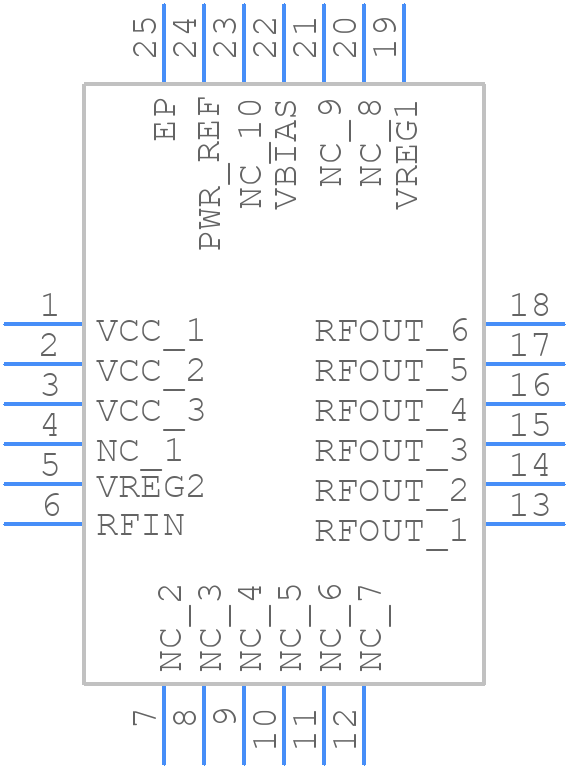

Use the download button to access the RF6886SR schematic symbol and PCB footprint.
