- Part Number RF6886TR13
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RF6886TR13-
- Released Date Jan 10, 2019
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
RF6886TR13 Details
-
Manufacturer Part Number:
RF6886TR13
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
4 X 4 MM, HALOGEN FREE AND ROHS COMPLIANT, LEADLESS, QFN-24
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Additional Feature:
IT CAN ALSO OPERATE AT 100 TO 1000 MHZ
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
31 dB
-
Input Power-Max (CW):
12 dBm
RF6886TR13 Frequently Asked Questions (FAQs)
-
A good grounding scheme is crucial for the RF6886TR13. It is recommended to use a solid ground plane on the PCB, and to connect the exposed pad of the device to the ground plane using multiple vias. Additionally, keep the RF traces as short as possible and use 50-ohm microstrip lines to minimize signal loss.
-
To optimize the biasing of the RF6886TR13, it is recommended to use a bias tee to isolate the DC bias from the RF signal. The optimal bias point is typically around 3.5V to 4.5V, with a current limit of 200mA to 300mA. Adjust the bias voltage and current limit based on the specific application and performance requirements.
-
The RF6886TR13 is a high-power device that requires proper thermal management to ensure reliable operation. It is recommended to use a heat sink or thermal pad to dissipate heat, and to keep the junction temperature below 150°C. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
-
To troubleshoot common issues with the RF6886TR13, start by checking the PCB layout and grounding scheme for any errors or omissions. Verify that the device is properly biased and that the input and output impedances are matched. Use a spectrum analyzer to measure the output signal and identify any spurious signals or noise. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
-
The RF6886TR13 is a sensitive device that requires proper ESD protection during handling and assembly. Use an ESD wrist strap or mat, and ensure that all tools and equipment are properly grounded. Handle the device by the package only, and avoid touching the pins or die. Use anti-static packaging and follow proper storage and handling procedures to prevent damage.
Trust Checks
Community Provided
System Verified
Community Approved
RF6886TR13 Overview

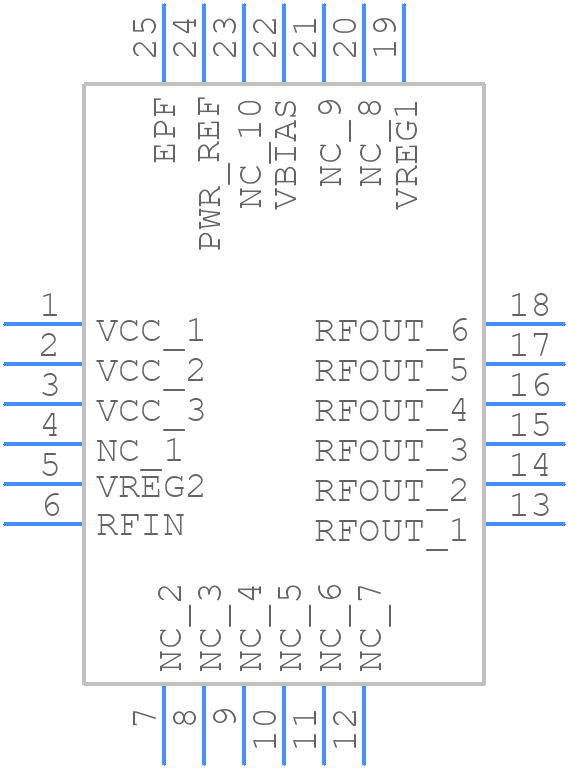

Use the download button to access the RF6886TR13 schematic symbol, PCB footprint, and 3D model.
