Part Image

RF703-12 - Teledyne Technologies

Description: High Frequency / RF Relays 4 GHz, RF, TO5, 2PDT 12VDC, Sensitive

Download RF703-12 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this RF703-12 model

Email notifications will be applied after download.

Send part feedback

Symbol

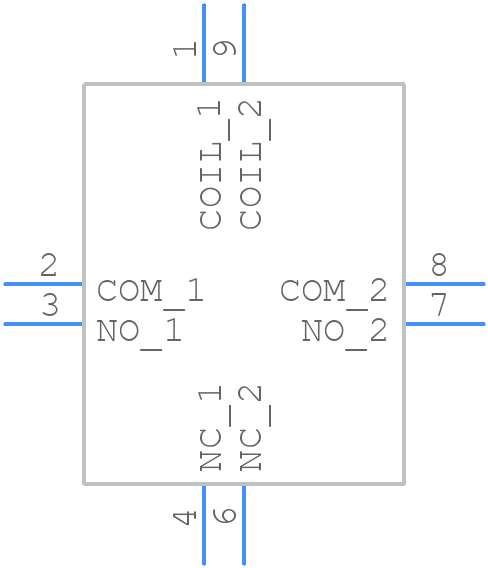

RF703-12 - Teledyne Technologies - PCB symbol

PCB Footprints

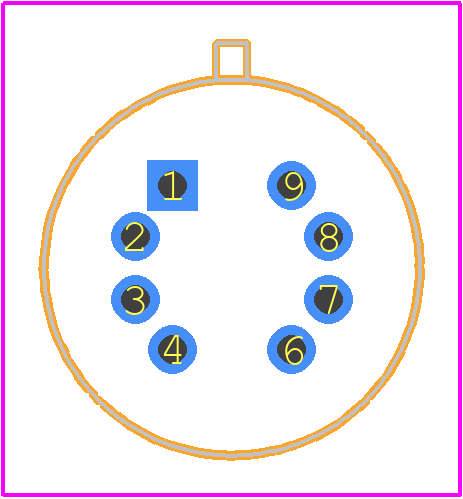

RF703-12 - Teledyne Technologies PCB footprint - Other - Other - RF703-12

Datasheet Download Datasheet
Stock & Prices Price & Stock for RF703-12
Part Number RF703-12
Manufacturer Teledyne Technologies
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - RF703-12
Released Date Apr 23, 2023
Last Modified Date Apr 24, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

RF703-12 Details

Manufacturer Part Number:
RF703-12
Manufacturer:
Teledyne Technologies Inc

Trust Checks

Expert Contribution

System Verified

Community Approved

RF703-12 Overview

Use the download button to access the RF703-12 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RF703, or try a keyword search, such as RF Relays
