Part Image

RFAM3620SB - Qorvo

Description: 45 - 1218 MHz, 36dB, 12V, GaAs pHEMT-MESFET, Edge QAM MCM

Download RFAM3620SB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

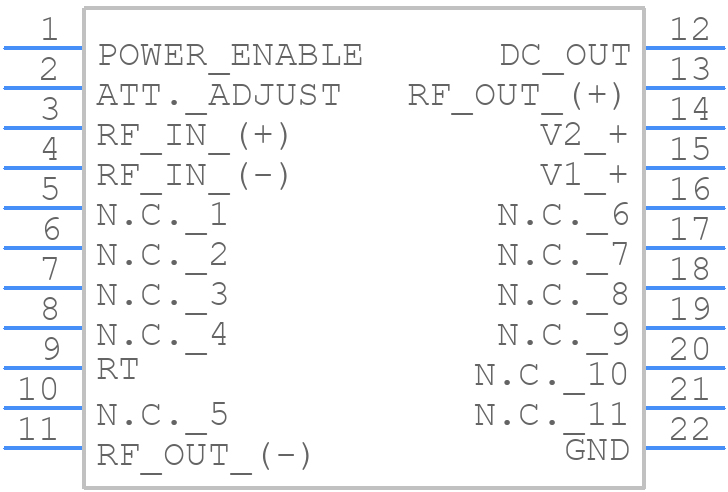

Symbol
RFAM3620SB - Qorvo - PCB symbol
click to zoom
PCB Footprints
RFAM3620SB - Qorvo PCB footprint - Other - Other - RFAM3620SB-1
click to zoom
3D Models
RFAM3620SB - Qorvo - 3D model - Other - RFAM3620SB-1
click to zoom

RFAM3620SB Details

  • Manufacturer Part Number:

    RFAM3620SB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.G

  • Manufacturer:

    Qorvo

  • JESD-609 Code:

    e4

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RFAM3620SB Overview

Use the download button to access the RFAM3620SB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFAM3, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
