A good PCB layout and grounding scheme is crucial for optimal performance. Qorvo recommends a 4-layer PCB with a solid ground plane, and to use a via-stitching technique to connect the top and bottom ground planes. Additionally, it's recommended to use a common ground point for all components and to minimize the distance between the RFAM3620TR7 and the antenna.
To optimize the RFAM3620TR7's performance, you should consider factors such as the operating frequency, output power, and impedance matching. Qorvo provides a set of application notes and design guides that can help you optimize the device's performance for your specific application. Additionally, you can use simulation tools such as ADS or AWR to model and optimize the device's performance.
The RFAM3620TR7 is a high-power device that can generate significant heat. To ensure reliable operation, it's essential to provide adequate thermal management. Qorvo recommends using a heat sink or a thermal pad to dissipate heat, and to ensure good airflow around the device. Additionally, you should avoid blocking the airflow around the device and ensure that the PCB is designed to dissipate heat efficiently.
To troubleshoot issues with the RFAM3620TR7, start by checking the device's operating conditions, such as the supply voltage, current, and temperature. Use a spectrum analyzer to check the device's output spectrum and ensure that it's operating within the specified frequency range. Additionally, check the device's input and output impedance matching, and ensure that the PCB layout is correct. If the issue persists, contact Qorvo's technical support for further assistance.
The RFAM3620TR7 is a sensitive device that requires proper ESD protection. Qorvo recommends using ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge. Additionally, ensure that the PCB is designed to minimize the risk of ESD damage, and that the device is handled and stored in an ESD-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFAM3620TR7 Overview

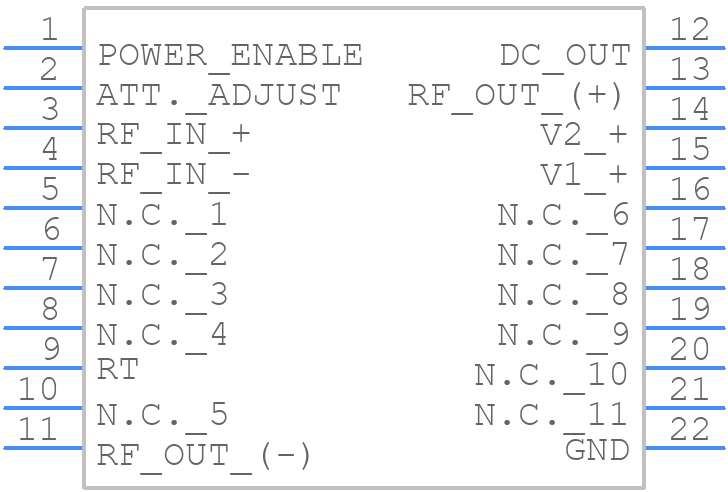

Use the download button to access the RFAM3620TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFAM3,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
