Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, ground plane, and component placement to ensure optimal performance and thermal dissipation.
Qorvo offers a free online tool called Qorvo's GaN Device Model and S-Parameter Tool, which allows designers to simulate and optimize the biasing and matching networks for their specific application. Additionally, Qorvo's application engineers can provide custom support and guidance.
The RFCA8828TR13 has undergone rigorous reliability and ruggedness tests, including JEDEC standards for temperature, humidity, and vibration. Qorvo also performs additional internal tests, such as accelerated life testing and environmental stress screening, to ensure the device meets high-reliability standards.
Yes, the RFCA8828TR13 can be used in non-50 ohm systems. Qorvo provides guidance on impedance matching in their application note AN-2171, which includes examples of impedance matching networks for different system impedances.
The RFCA8828TR13 has a maximum operating temperature range of -40°C to +125°C. As temperature increases, the device's performance may degrade, including reduced power output and efficiency. Qorvo provides thermal derating guidelines in the datasheet to help designers ensure reliable operation within the specified temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFCA8828TR13 Overview

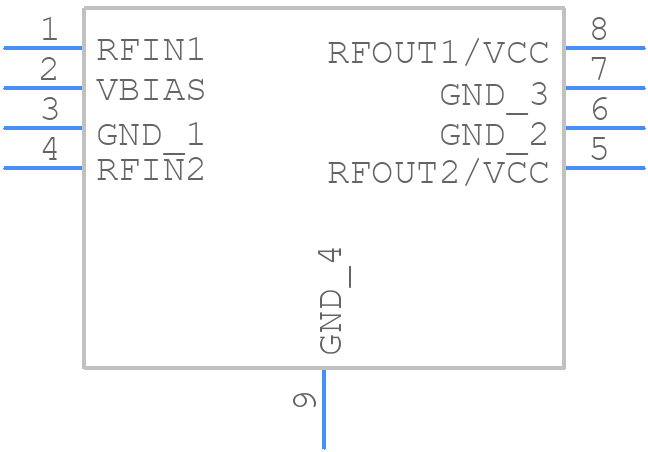

Use the download button to access the RFCA8828TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFCA8,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
