A good grounding scheme is crucial for the RFCA8830TR13. It is recommended to use a solid ground plane and to connect the exposed pad of the device to the ground plane. The PCB layout should also minimize the length of the signal traces and avoid any sharp corners or bends.
The input and output matching networks of the RFCA8830TR13 can be optimized using simulation tools such as ADS or AWR Microwave Office. The goal is to achieve a good impedance match between the device and the external circuitry. The matching networks can be designed using lumped elements or distributed elements such as transmission lines.
The maximum power handling capability of the RFCA8830TR13 is typically limited by the device's thermal characteristics. The device can handle a maximum input power of +20 dBm, but the actual power handling capability may be lower depending on the operating frequency, bias conditions, and thermal environment.
To ensure the stability of the RFCA8830TR13, it is recommended to follow a few guidelines. First, ensure that the device is properly biased and that the operating frequency is within the specified range. Second, use a good quality decoupling capacitor to filter out any noise on the supply lines. Finally, use a stable and regulated power supply to power the device.
The recommended operating temperature range for the RFCA8830TR13 is -40°C to +85°C. However, the device can operate up to +105°C with some degradation in performance. It is recommended to follow the recommended operating conditions to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFCA8830TR13 Overview

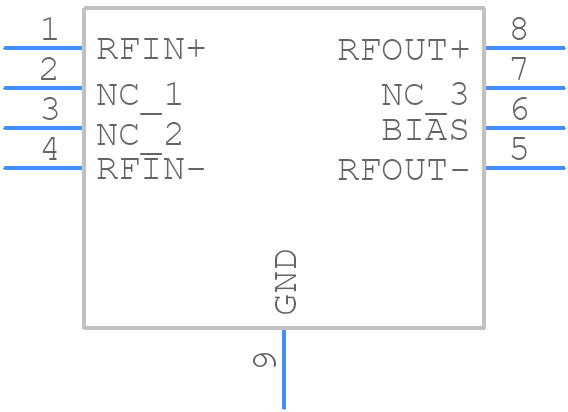

Use the download button to access the RFCA8830TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFCA8,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
