Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
The biasing circuit should be designed to provide a stable voltage supply to the device. A recommended biasing circuit is shown in the datasheet, but it's essential to consider the specific application's requirements and adjust the circuit accordingly. Additionally, ensure that the voltage regulator used can provide a low noise and stable output.
The maximum power handling capability of the RFFM4527TR7 is not explicitly stated in the datasheet. However, according to Qorvo's application note AN-2171, the device can handle up to 2W of input power. It's essential to ensure that the device is operated within its recommended operating conditions to avoid damage or degradation.
To troubleshoot issues with the RFFM4527TR7, start by verifying that the device is properly biased and that the input signal is within the recommended specifications. Check for any signs of overheating, and ensure that the device is properly mounted and connected. If issues persist, consult Qorvo's application notes and technical support resources for further guidance.
The RFFM4527TR7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device. Consult Qorvo's application notes for more information on thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFFM4527TR7 Overview

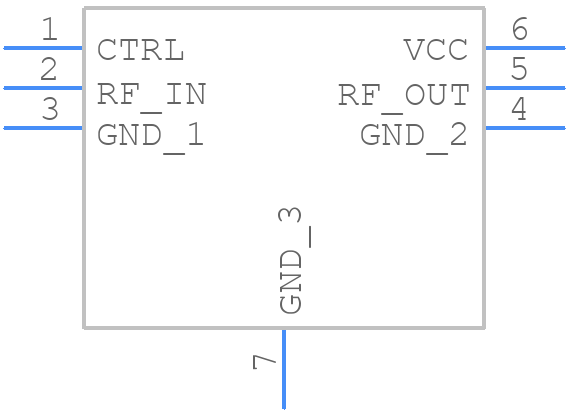

Use the download button to access the RFFM4527TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFFM4,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
