Technical Content
Part Image

RFFM6205TR7 - Qorvo

Description: 2.4 GHz ISM / Zigbee® Front End Module Package: QFN, 16-pin, 2.5mm x 2.5mm x 0.5mm

Download RFFM6205TR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

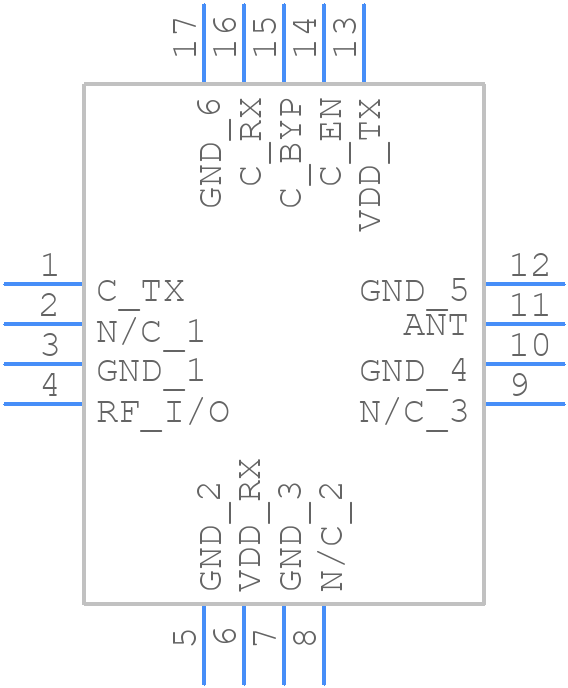

RFFM6205TR7 - Qorvo - PCB symbol
click to zoom
PCB Footprints
RFFM6205TR7 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Package: QFN, 16-pin, 2.5mm x 2.5mm x 0.5mm
click to zoom
3D Models
RFFM6205TR7 - Qorvo - 3D model - Quad Flat No-Lead - Package: QFN, 16-pin, 2.5mm x 2.5mm x 0.5mm
click to zoom

RFFM6205TR7 Details

  • Manufacturer Part Number:

    RFFM6205TR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    2

  • Telecom IC Type:

    RF FRONT END CIRCUIT

RFFM6205TR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the RF traces. A 50-ohm microstrip line should be used to connect the device to the antenna.
  • The device requires a 2.4V to 3.6V power supply. A voltage regulator or a low-dropout regulator (LDO) should be used to regulate the voltage. The voltage supply should be decoupled with a 10uF capacitor in parallel with a 100nF capacitor.
  • The RFFM6205TR7 can handle up to 30dBm (1W) of input power. However, the device is typically operated at a maximum of 20dBm (0.1W) to ensure reliable operation and minimize the risk of damage.
  • Use a spectrum analyzer to measure the output power and frequency of the device. Check the voltage supply and decoupling capacitors to ensure they are functioning correctly. Verify that the device is properly biased and that the input power is within the recommended range.
  • The RFFM6205TR7 is specified to operate from -40°C to 85°C. However, the device can be operated at temperatures up to 105°C with reduced performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RFFM6205TR7 Overview

Use the download button to access the RFFM6205TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFFM6, or try a keyword search, such as Cellular Telephone Circuits

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
